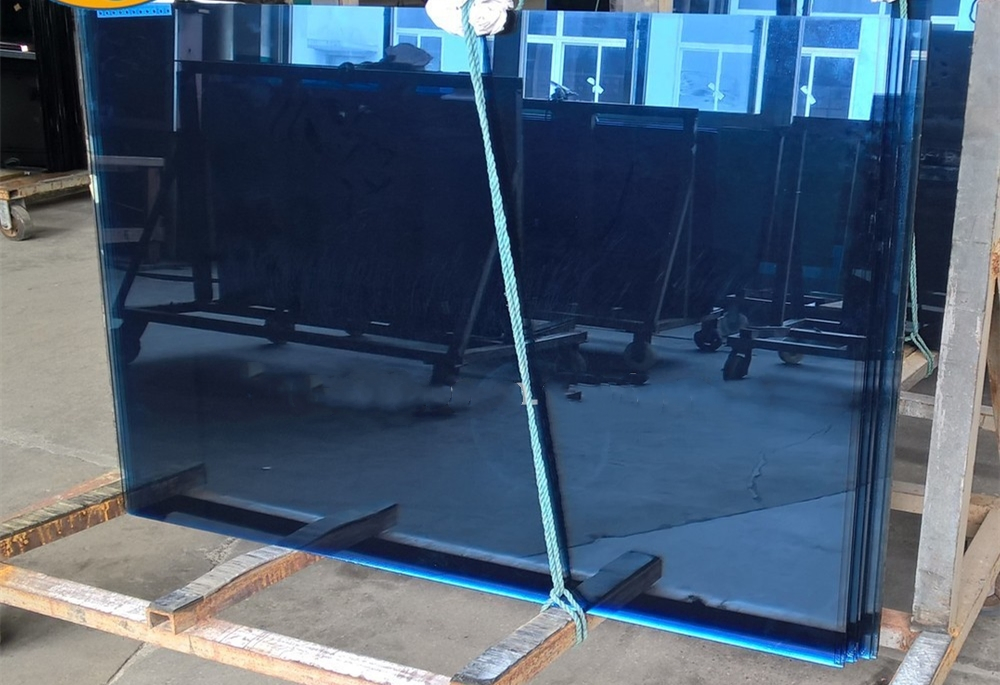

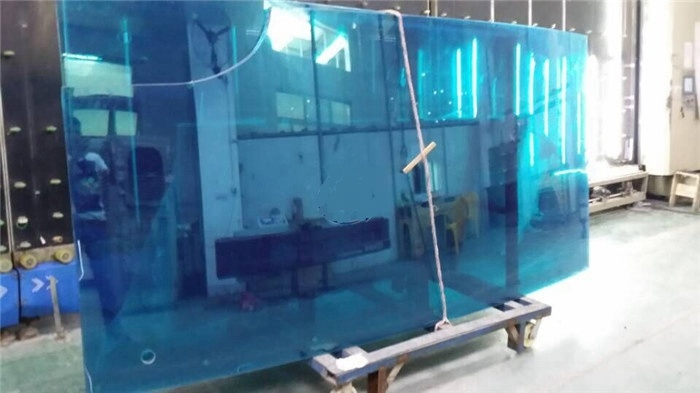

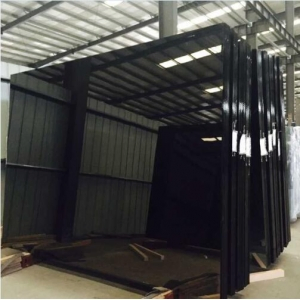

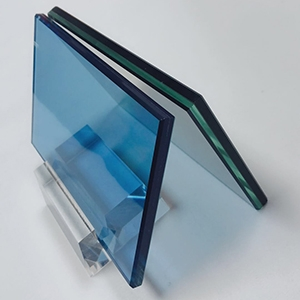

Sunlight Shading Laminated Glass

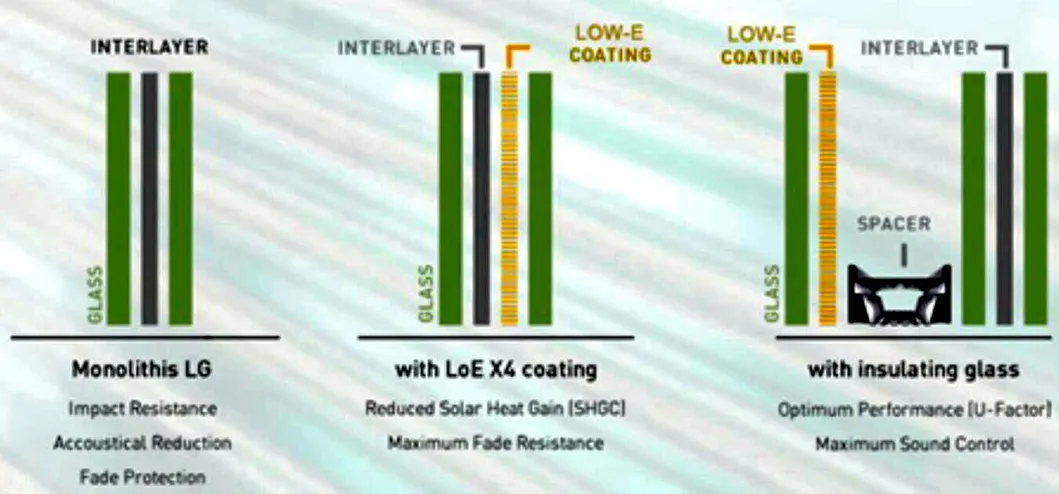

It is a type of safety glazing constructed by uniting two sheets of glass (one is sunlight shading glass) with a sturdy interlayer (PVB film or Sentry Glas Plus/SGP) and applying heat and pressure to create an inseparable bond.

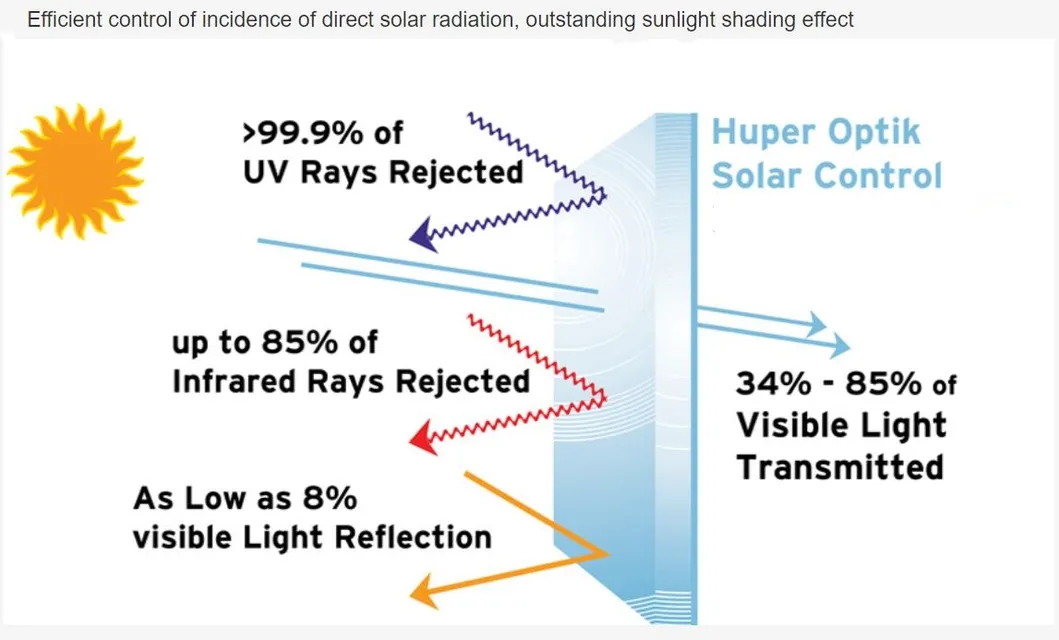

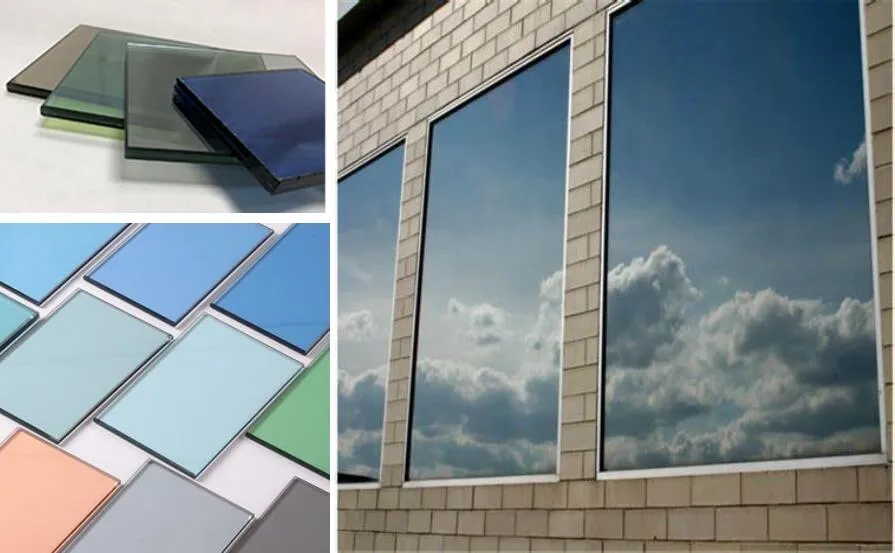

Sunlight shading glass (Heat reflective coated glass or solar control glass) is produced by sputtering special materials onto high-quality float glass under a vacuum environment. This process accurately controls solar energy direct radiation reflectance, transmission, absorption, and coating colors.
| Glass Thickness | 3+3, 4+4, 5+5, 6+6, 8+8, 10+10, 12+12, 5+5+12, 6+6+12 mm etc. |
| PVB Thickness | 0.38mm, 0.76mm, 1.14mm, 1.52mm, 1.9mm, 2.28mm, 3.04mm |
| SGP Thickness | 0.98mm, 1.02mm, 1.52mm, 2.28mm, 2.29mm, 2.54mm etc. |
| Substrate Color | Clear, Bronze, Grey, Green, Blue Reflective etc. |
| Laminate Layer | Clear PVB, SGP, PDLC film, EVA etc. (Dupond Sentry Glass Plus, Saflex, Sekisui, Trosifol) |

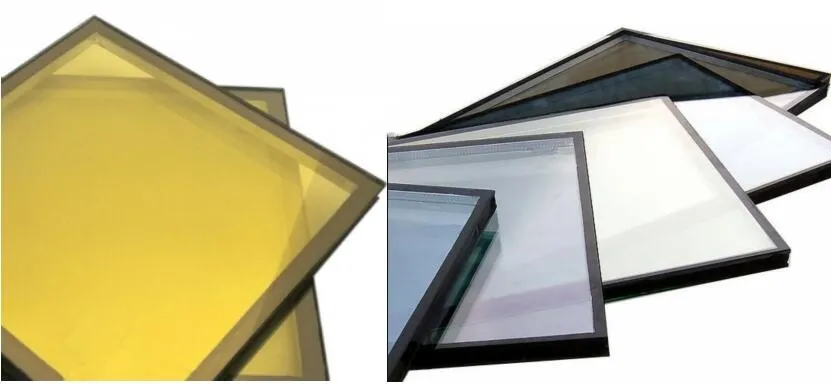

| Glass Type | Raw float glass, Tempered glass, Heat reflective glass, Heat strengthened, Insulated etc. |
| Certificate | AS/NZS standard; CE or TUV; USA ANSI; Kuraray |

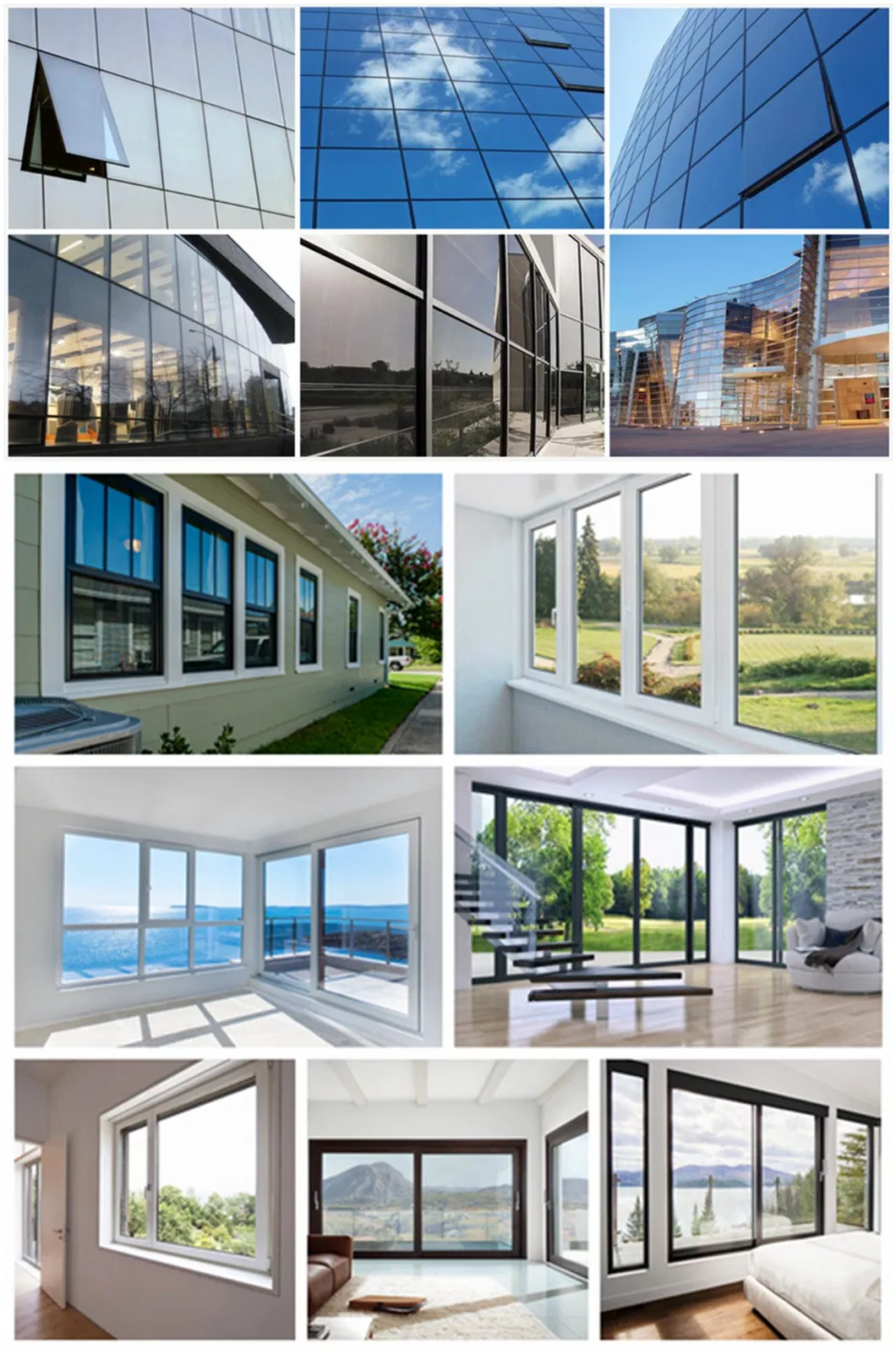

| Applications | Windows, doors, curtain wall, balcony, railing, partition, roof, etc. |

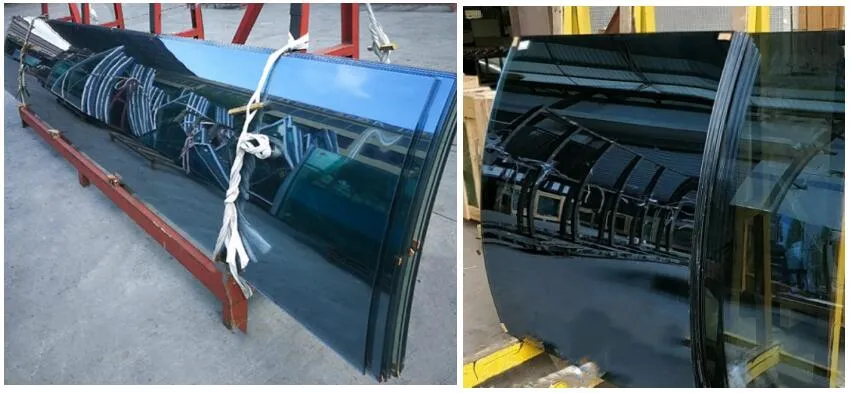

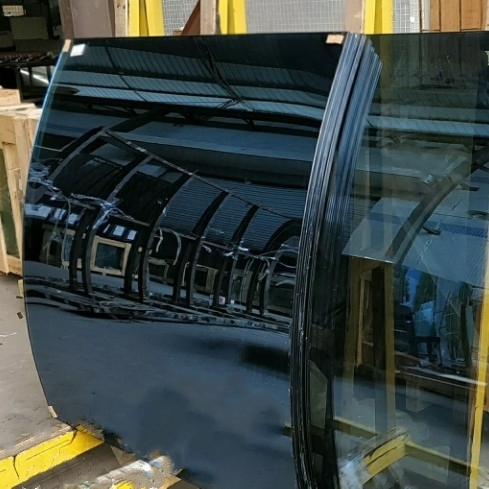

| Form Type | Flat or Bent/Curved available |

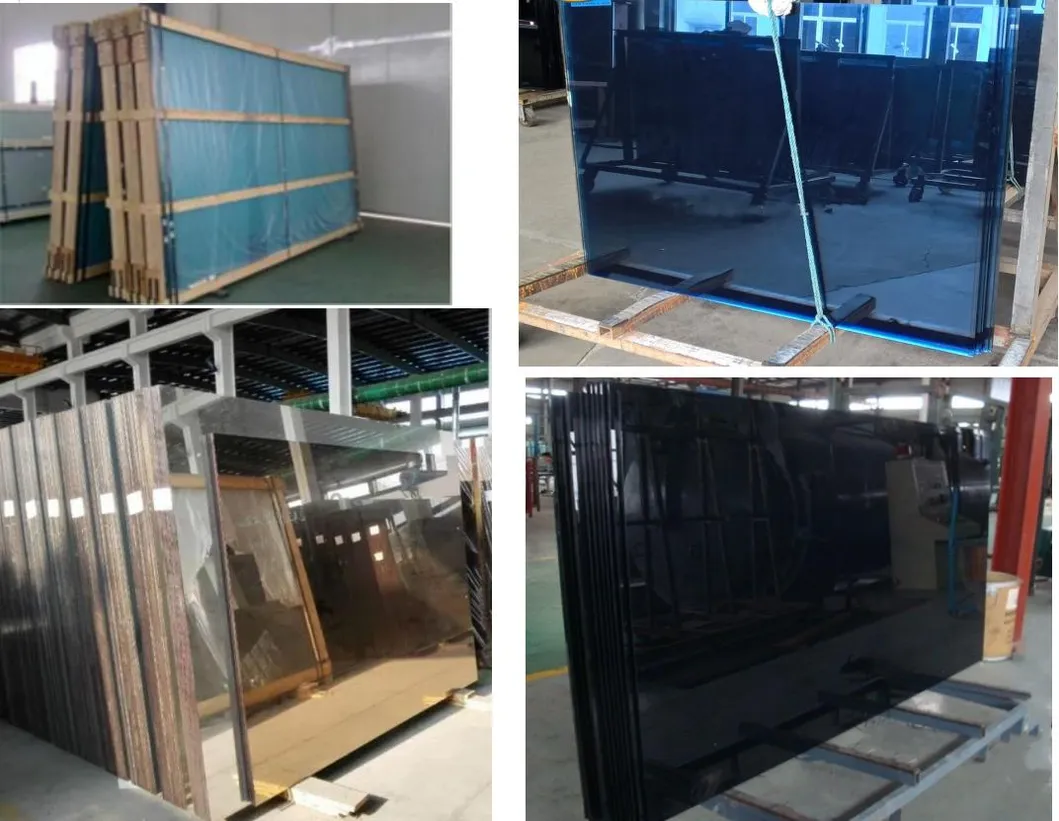

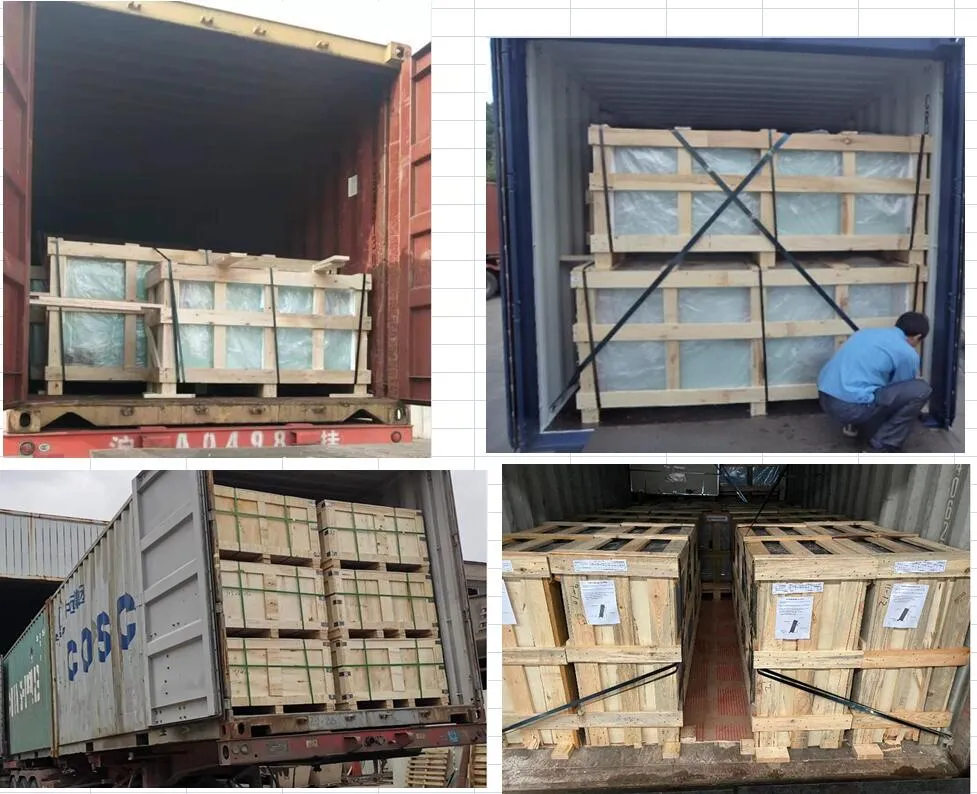

| Packing | Wooden case or customized package |

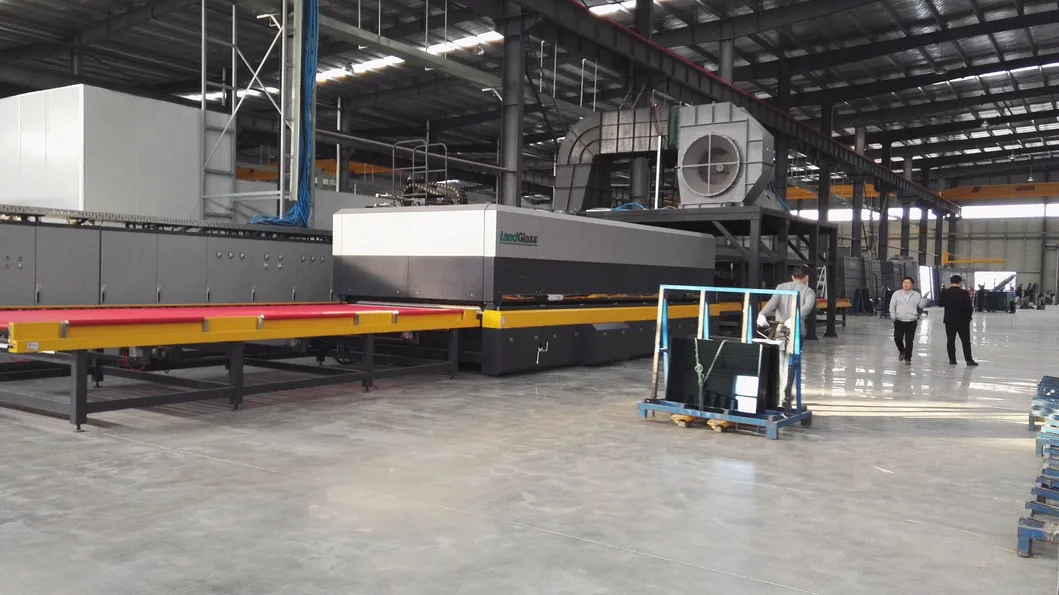

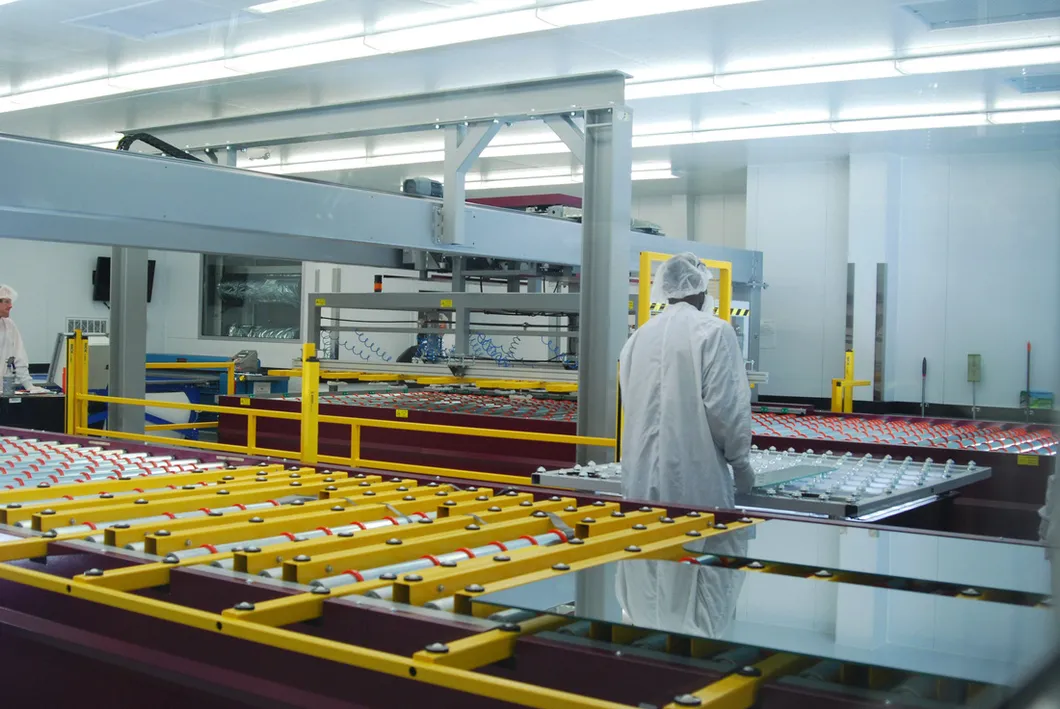

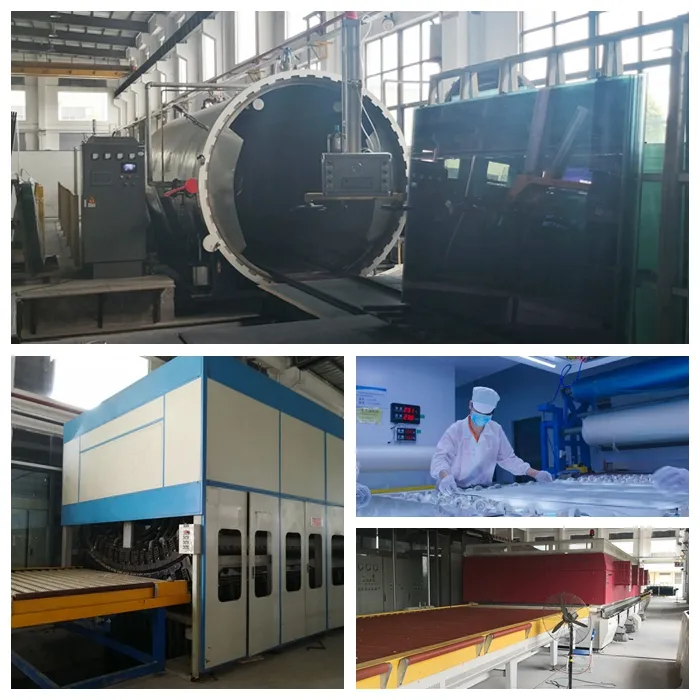

Equipped with advanced machinery from the USA, Italy (Bottero), Finland (Tamglass), and South Korea (Ekang), our facilities specialize in toughened glass, laminated glass, insulated glass, and silk-screen printed glass. Our products serve multiple sectors including architectural building glass and household appliances.
All manufacturing processes meet international standards including AS/NZS 2208:1996, ISO9002, SGCC: ANSI Z97.1, and EN12150. We provide high-security glass solutions for swimming pool fences, curtain walls, skylights, and specialized furniture components.
