Building & Industrial Glass Tempered Vacuum Insulating Glass for Sun Room

Product Name:	China Factory 8mm Customized Soundproof Tempered C
Application:	Architectures,BIPV,Agriculture,Vehicles
Max.Demension:	1500*2500mm

Send Inquiry

Product Description

Basic Specifications

Model NO.

Vacuum glass

Min. Dimension

300*300mm

Thickness

8-11mm

Vacuum Layer

0.3mm

Weight

20-28 Kg/Square Meter

Color Choice

Clear, Ultra Clear, Dark Gray, Ocean Blue, Sapphire

Service

Customized Service

Max Specification

1500*2500mm

HS Code

7008001000

Capacity

10000 Square Meter Per Month

Product Overview

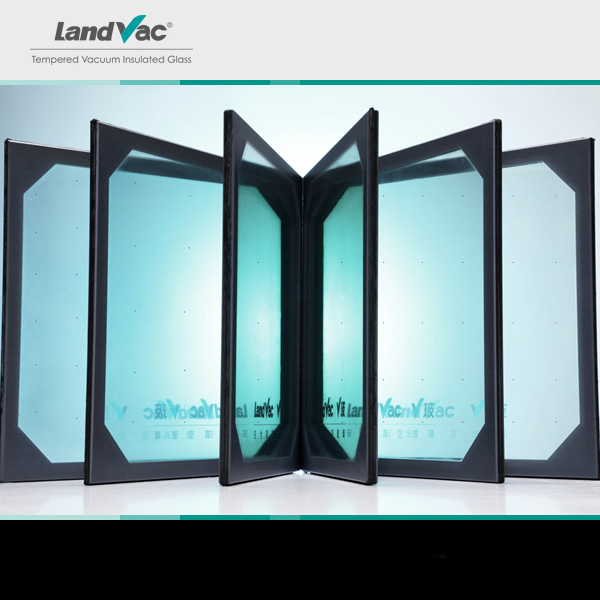

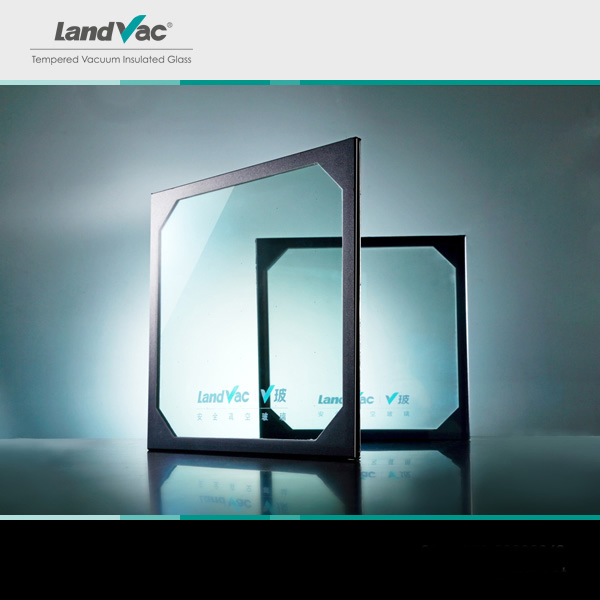

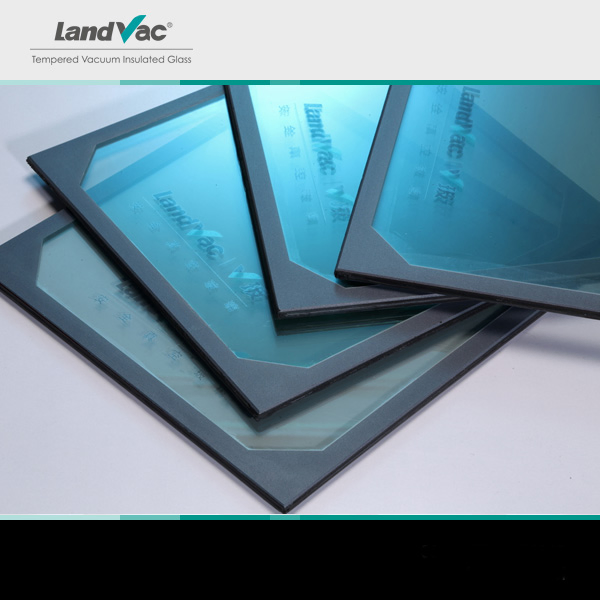

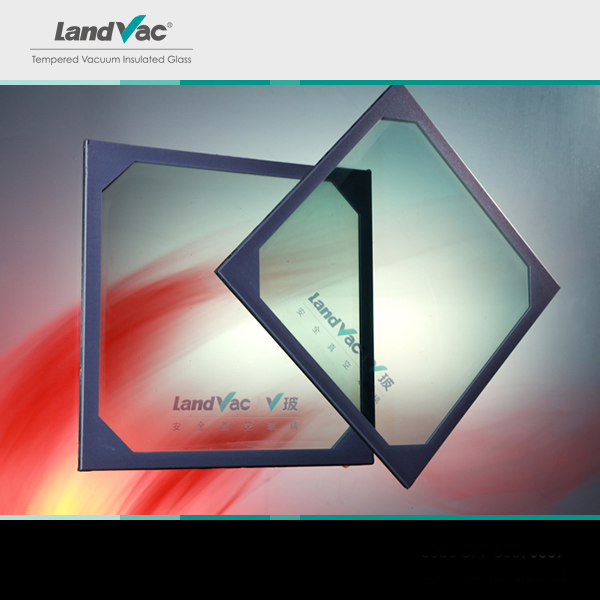

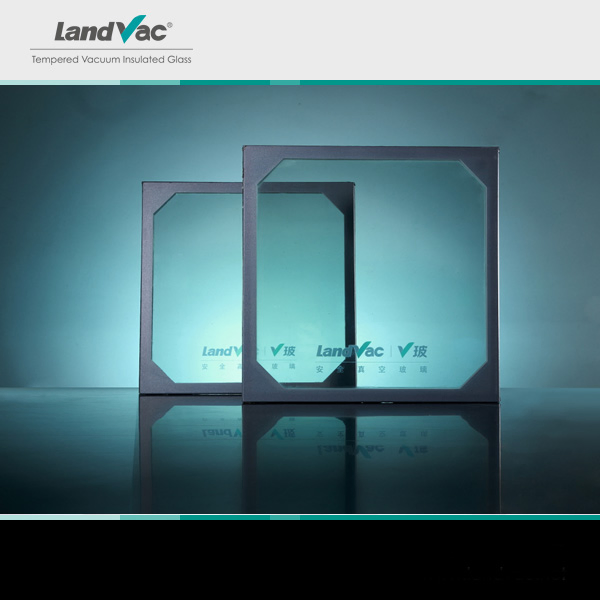

8mm Customized Soundproof Tempered Clear Vacuum Insulated Glass

Thermal Insulation: U-Value as low as 0.4W/(m²·K). A 8.3 mm thick vacuum glass has better thermal insulation effect than a 1.5m thick brick wall.

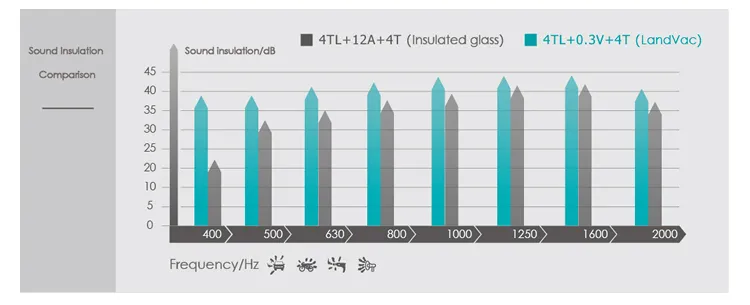

Noise Reduction: Weighted sound reduction index exceeds 36dB, providing a quiet environment even in downtown areas.

Free of Condensation: Remains clear even when the temperature falls below -70 °C, maintaining exceptional transparency for buildings and freezers.

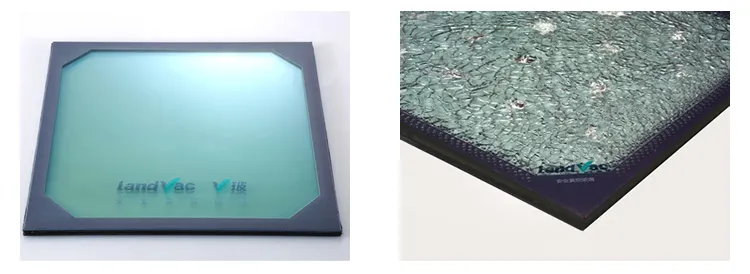

Tempered Safety: Meets tempered glass standards with wind resistance up to ±7200Pa and high surface stress (>90MPa).

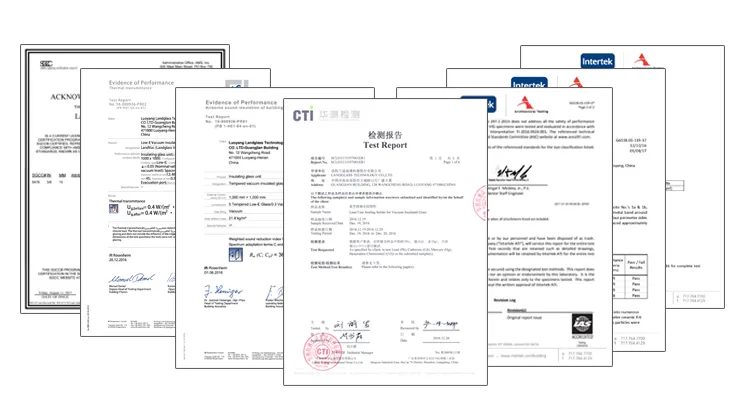

Certifications

Verified by ANSI Z97.1, ATI (North America), ift (Germany), and RoHS (European Union) standards for impact testing and hazardous substance restriction.

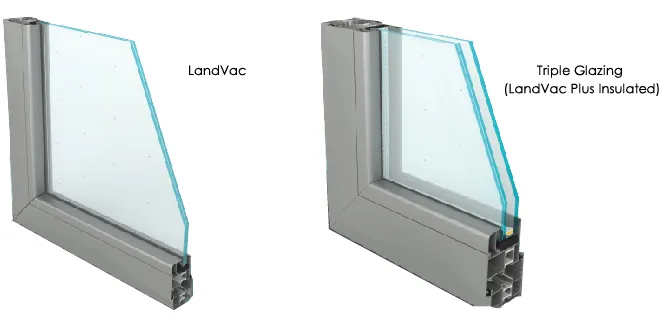

Technical Specifications & Structure

Product Type	Structure	Thickness (mm)
LandVac	4TL+0.3V+4T	8.3
Triple Glazing	4T+12A+4TL+0.3V+4T	24.3

Product Type	U-value (W/m²K)	SHGC	SC	Sound Isolation (dB)
LandVac	0.48	0.49	0.56	39
Triple Glazing	0.42	0.45	0.52	42

* T: Tempered clear glass; TL: Tempered Low-E glass; V: Vacuum space; A: Air space.

Key Advantages

Energy Efficiency

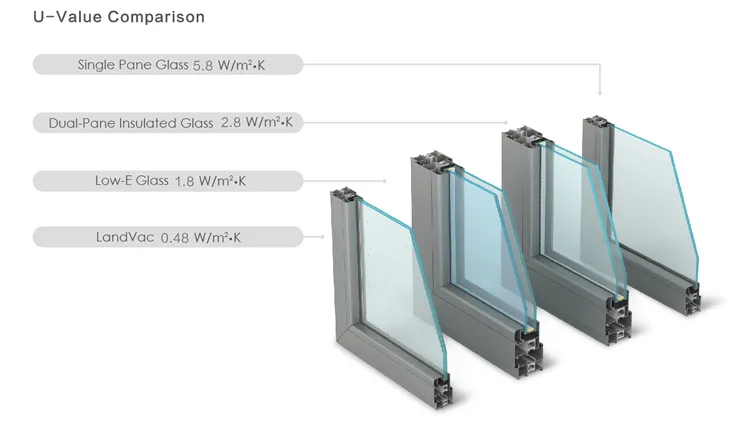

The thermal insulation performance is 2 to 4 times better than standard insulated glass and 6 to 10 times better than single pane glass. It meets international passive house requirements.

Long Service Life

Life expectancy exceeds 25 years. Flexible edge sealing materials prevent sealing failure caused by thermal expansion or material aging.

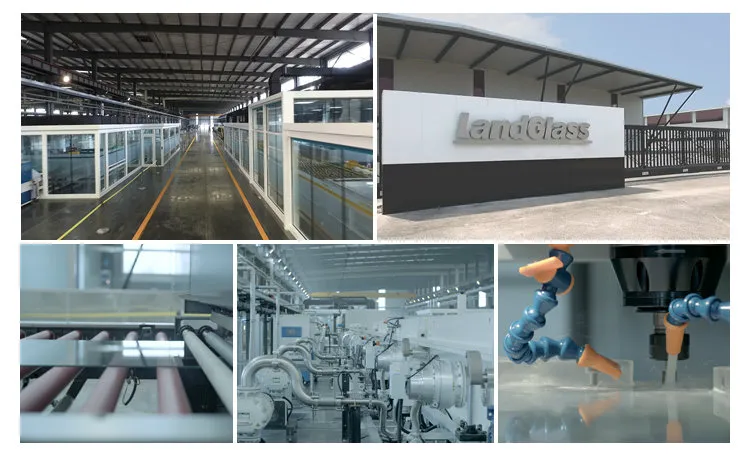

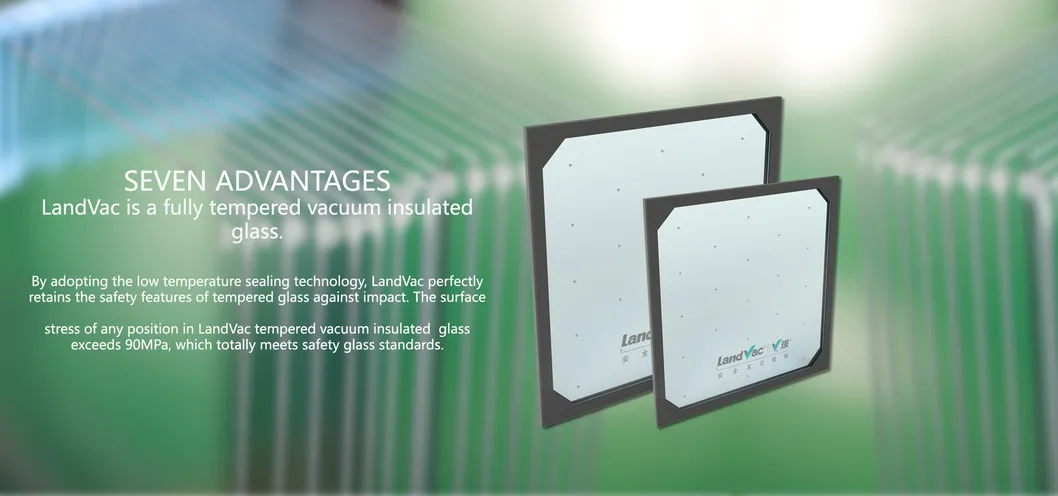

Advanced Production Technologies

Low Temperature Sealing	Retains safety features of tempered glass with surface stress exceeding 90MPa.
Flexible Edge Sealing	High resistance against thermal expansion/contraction, ensuring durability.
High Vacuum Sealing	Sealed in a UHV chamber to maintain high degree vacuum layers.
Flat Sealing Technology	Seal does not protrude, allowing for easy mounting and safe transport.
Intelligent Automation	Continuous production line minimizes human intervention and ensures quality consistency.

Applications

Architecture: Commercial/residential windows, curtain walls, and skylights.

Home Appliances: Wine cabinets, freezers, and display cases.

BIPV: Solar photovoltaic buildings.

Research: Observation windows for labs and quiet rooms.

Agriculture: Modern greenhouse farming.

Transportation: Windows for high-speed rail, aircraft, and vessels.

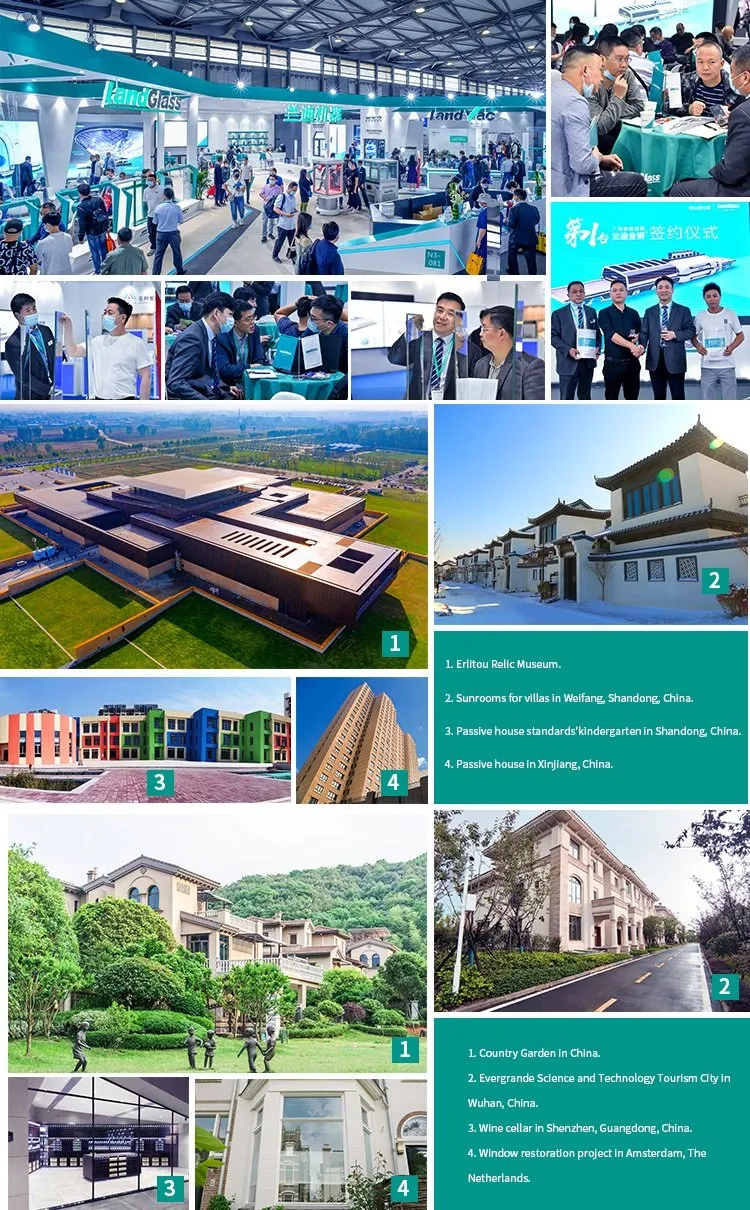

Project Exhibition & Quality

Frequently Asked Questions

Q1: How effective is the thermal insulation compared to regular glass? A: Our vacuum insulated glass has a U-value as low as 0.48 W/m²K, which is 2 to 4 times better than standard insulated glass and up to 10 times better than single pane glass.

Q2: Does this glass provide noise protection from traffic? A: Yes, it has a weighted sound insulation of 39 dB, effectively blocking medium and low-frequency noises typical of traffic and construction.

Q3: Will condensation form on the glass in extreme cold? A: No. The high vacuum interspace ensures the glass remains free of condensation even when outdoor temperatures fall as low as -40°C or even -70°C.

Q4: Is the vacuum glass safe for high-rise buildings? A: Absolutely. It is a fully tempered safety glass with surface stress exceeding 90MPa and wind resistance up to ±7200Pa, meeting international safety glass standards.

Q5: What is the expected lifespan of the vacuum seal? A: Due to our flexible edge sealing technology and high-efficiency getter materials, the glass has a service life exceeding 25 years.

Q6: Can the size of the glass be customized? A: Yes, we offer customized services with a maximum size of 1500x2500mm and a minimum size of 300x300mm.
