Product Description

Basic Specification
Model NO.
W-DGU -SMART
Type
Pdlc Smart Glass
Shape
Flat / Curved
Glass Thickness
5+5+12A+6 / Customized
Air Cavity Depth
12mm
Moh's Hardness
8
Color
Clear / Ultra Clear / Tinted
Usage
Furniture, Building, Window, Facade, Skylight
Application Area
Interior & Exterior
Production Time
5-15 Days
HS Code
7007290000
Origin
China
Product Overview
PDLC Smart Glass Banner

Switchable PDLC Building Decorative Glass Laminated Tempered Smart Privacy Glass

Smart glass is a high-tech laminated glass product consisting of a Polymer Dispersed Liquid Crystal (PDLC) film sandwiched between two layers of glass and conductive interlayers. This PDLC film allows for switching the visual appearance of the glass from opaque (translucent) to clear (transparent) instantly.

Working Principle: When electricity is applied, the liquid crystals align, making the glass transparent. When the power is off, the crystals return to scattered positions, rendering the glass opaque for privacy.

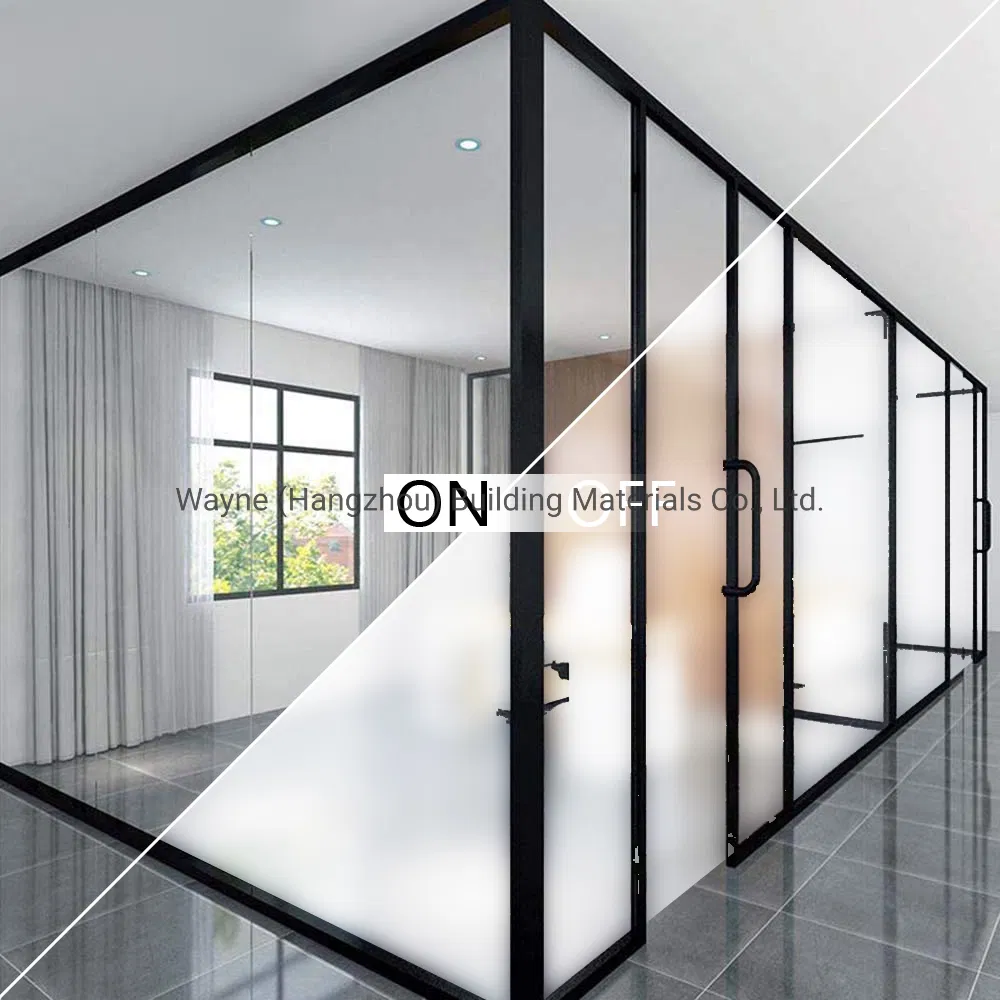

Smart Glass Detail 1

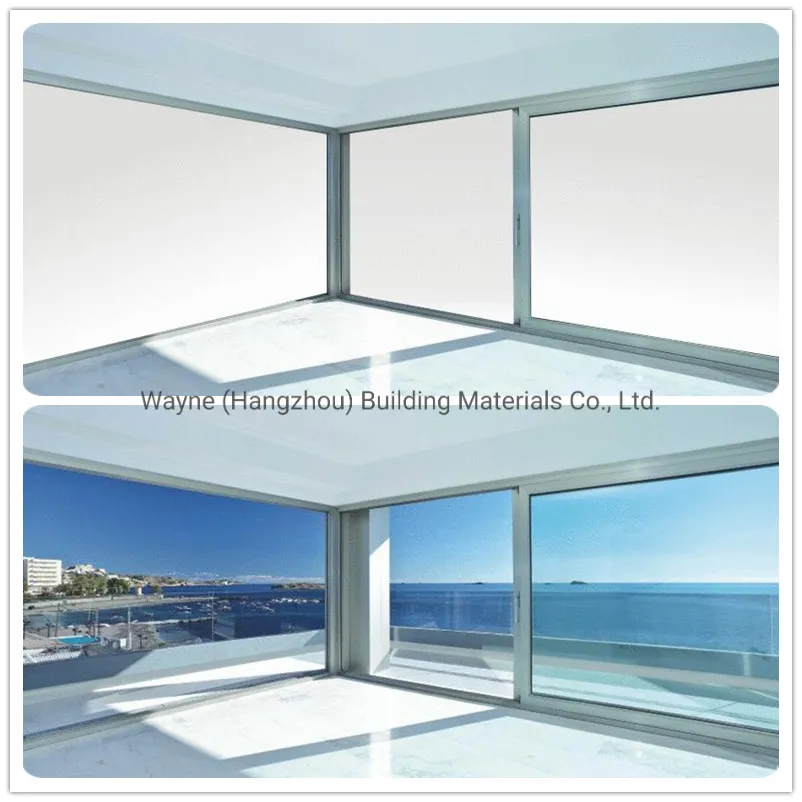

Smart Glass Detail 2
Technical Parameters
Item Status Unit Criteria Standard
Rated VoltageONV36 / 48 / 60 (AC50Hz)Multimeter
Power ConsumptionONw/sq.m1.5 / 2.5 / 4.0Measuring Instrument
Visible Light TransmittanceON%>85GB/T 2680-94
OFF%>65
HazeON%<3GB/T 2410-2008
OFF%>95
Response TimeON/OFFms<45 / <200Measuring Instrument
UV Blocking RateON/OFF%99ISO 9050-2003
Sound Insulation-dB>35dBGB 18910.1-2002
LifespanONh>80,000GB 18910.5-2008
Key Advantages
  • Maximum Width: Up to 2000mm, among the largest in the market.
  • Processing Versatility: Can be produced via autoclave or oven methods.
  • Design Flexibility: Both flat and bent panels are available based on project needs.
  • Superior Clarity: Best transparency when powered on with minimal haze.
  • Protection: Blocks 99% of UV rays and 90% of infrared radiation.
  • Multi-Functional: High privacy protection and works as a high-quality projection screen.
  • Sound Proofing: Effectively reduces noise and voice spread.
Applications

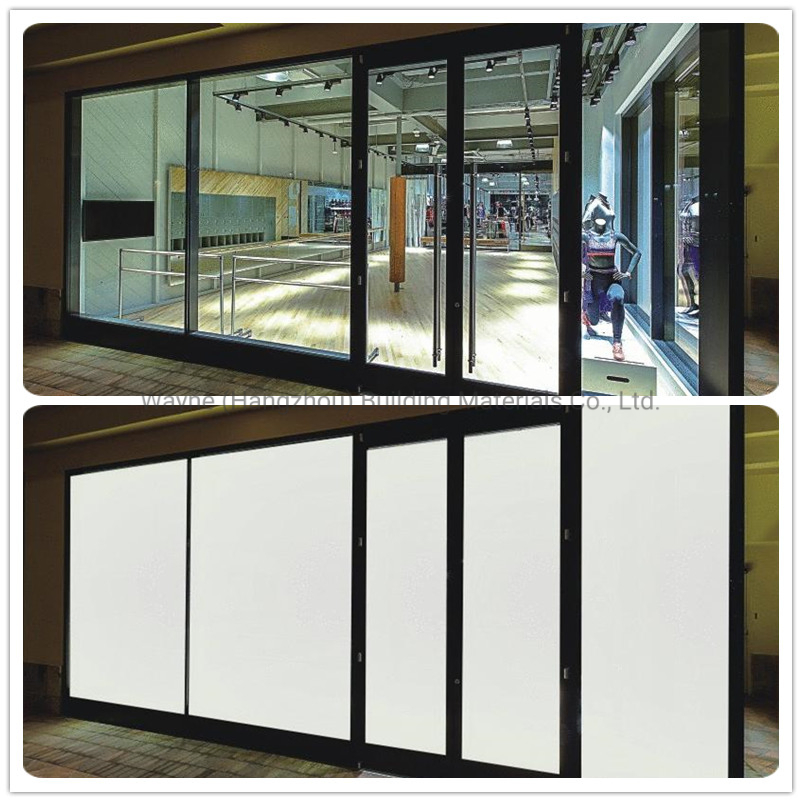

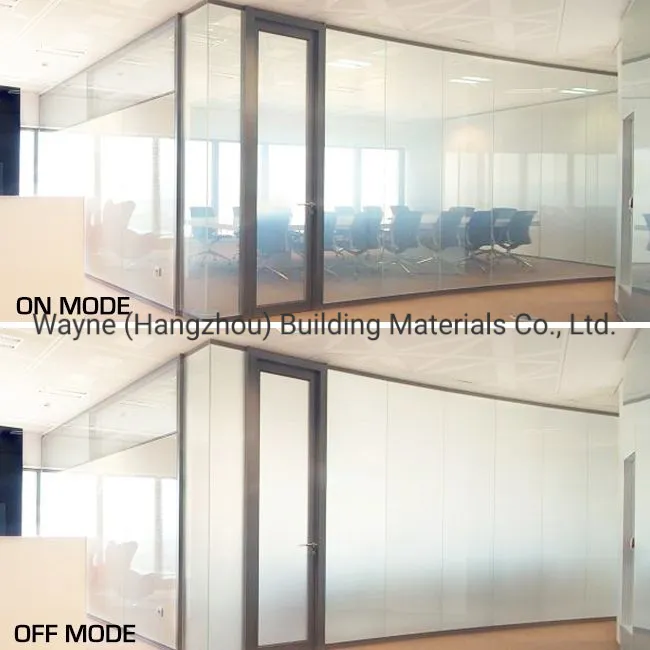

Application 1

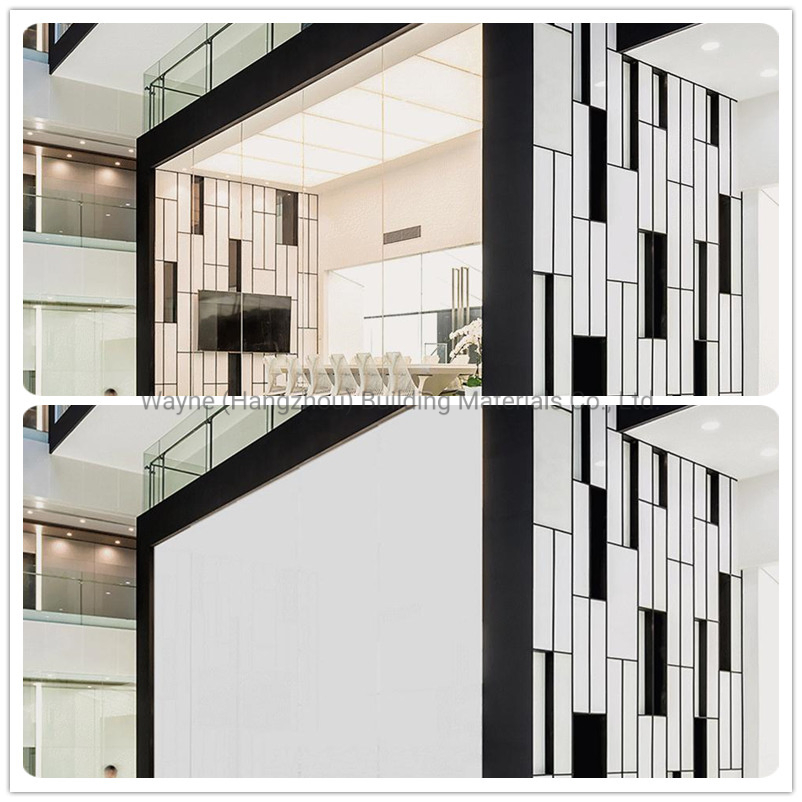

Application 2

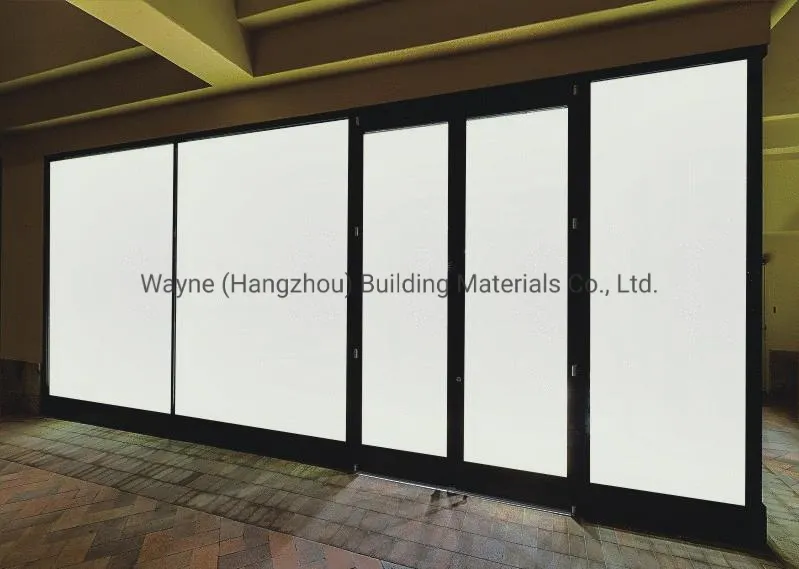

Office Application 1

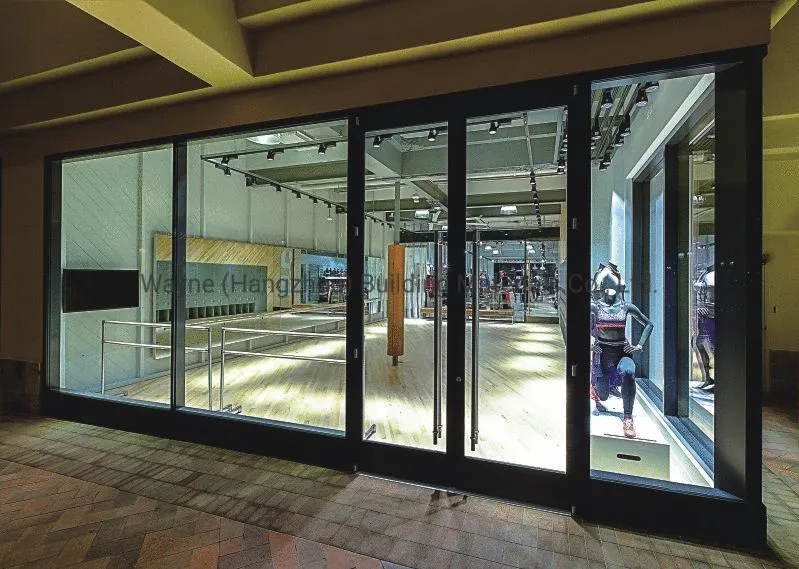

Office Application 2

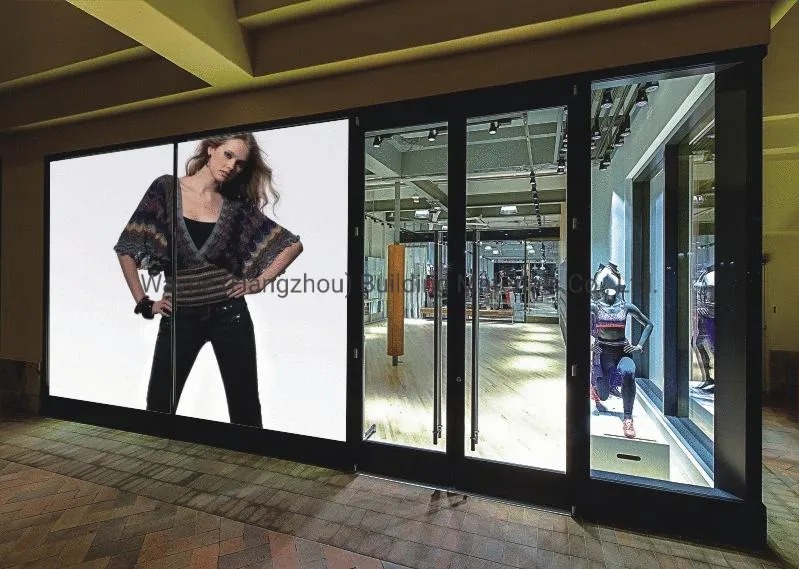

Office Application 3

Ideal for: Hotel Bathrooms, Office Partitions, Conference Rooms, Facades, Curtain Walls, Restaurants, and Hospital Projections.

Factory & Packaging

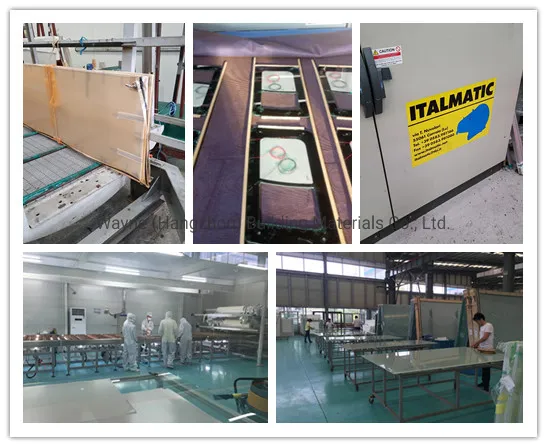

Factory View 1

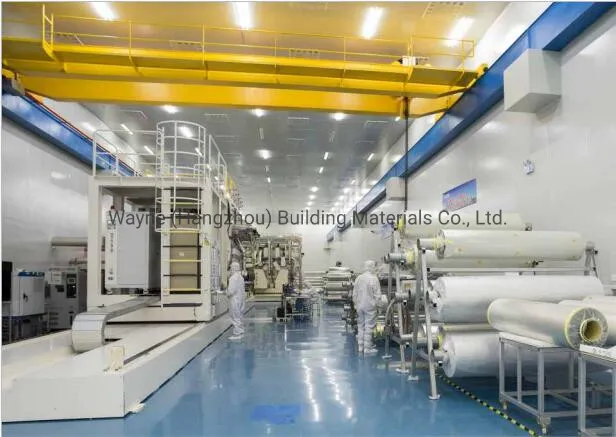

Factory View 2

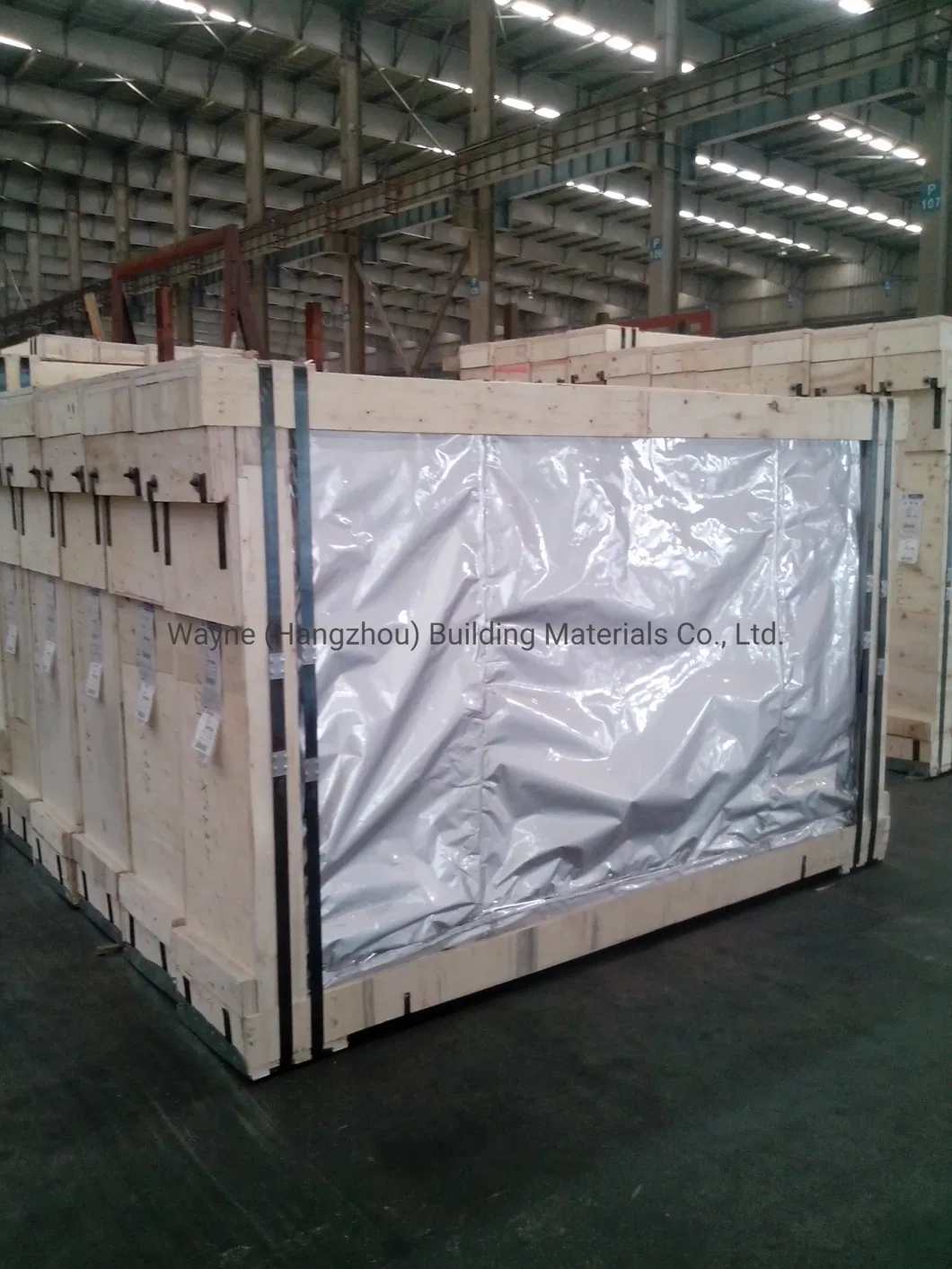

Packing 1

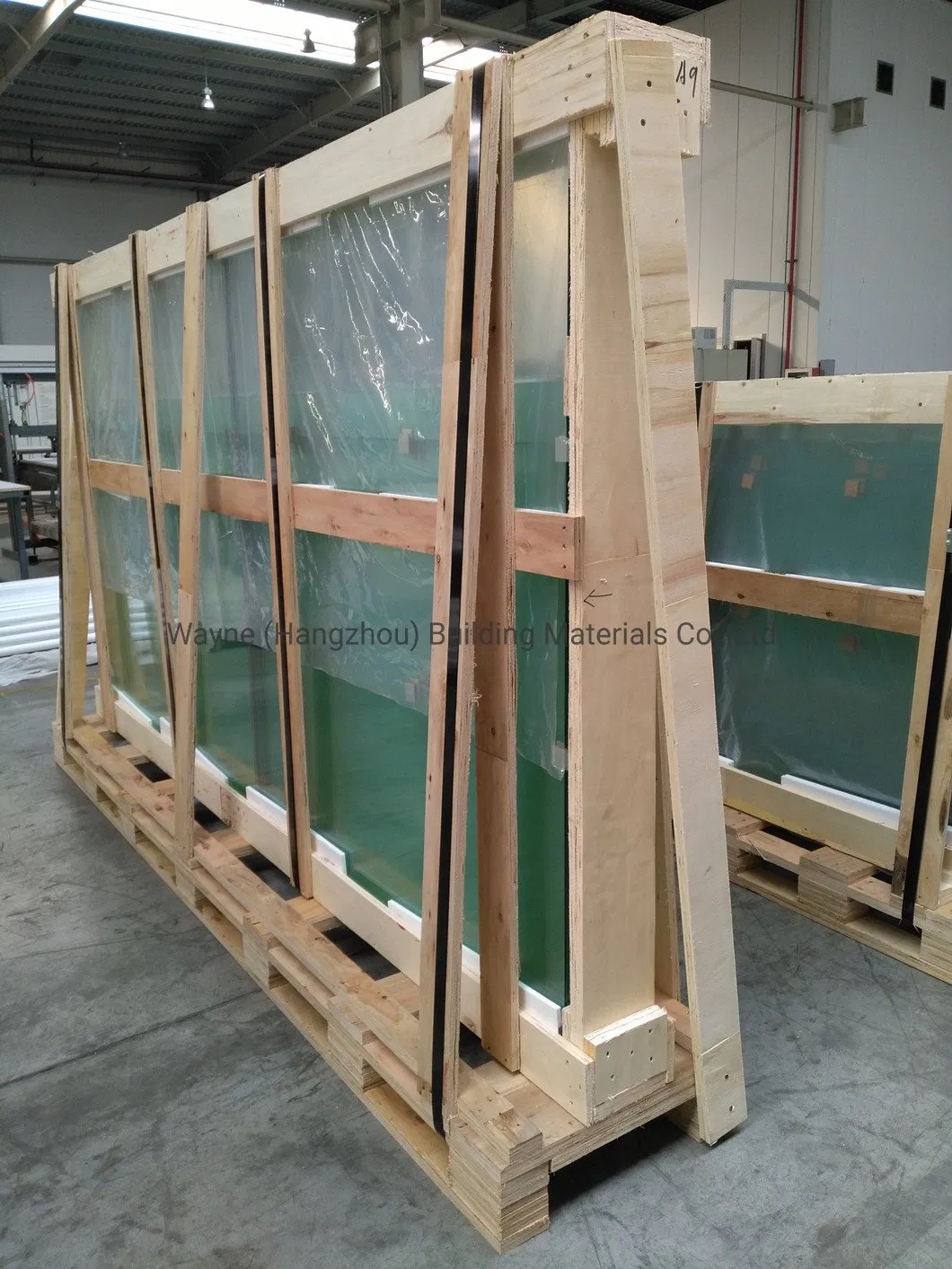

Packing 2

All products are packed in professional seaworthy wooden crates for safe LCL transport.

Frequently Asked Questions
How does PDLC Smart Glass work?
It uses a film of liquid crystals that align when an electric current is applied, making the glass transparent. When the current is off, the crystals scatter light, making the glass opaque.
What is the maximum size available for smart glass?
We can provide panels up to a maximum width of 2000mm and a length of 3500mm.
Does it provide UV and Heat protection?
Yes, our smart glass blocks 99% of UV rays and 90% of infrared radiation, protecting interiors and improving energy efficiency.
Can smart glass be used for projection?
Absolutely. In its opaque (OFF) state, the PDLC film acts as an excellent rear-projection screen for presentations or advertising.
Is the glass safe and durable?
Yes, it is a type of laminated safety glass. It has a lifespan of over 80,000 hours in the ON state and can be switched over 2 million times.
What types of glass can be used as substrates?
We offer clear glass, ultra-clear (low-iron) glass, and various tinted glass options to match your design requirements.
