DotView Glass
1 / 5

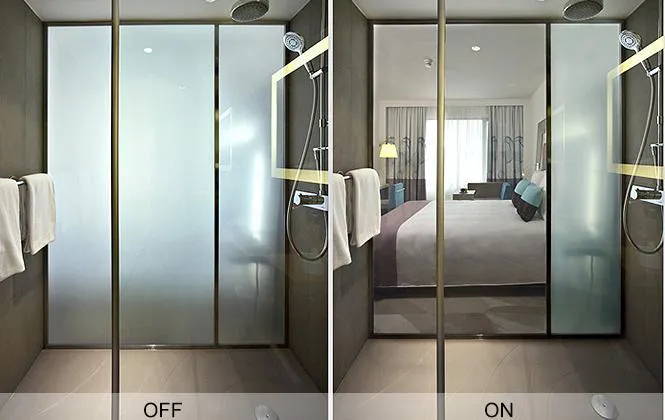

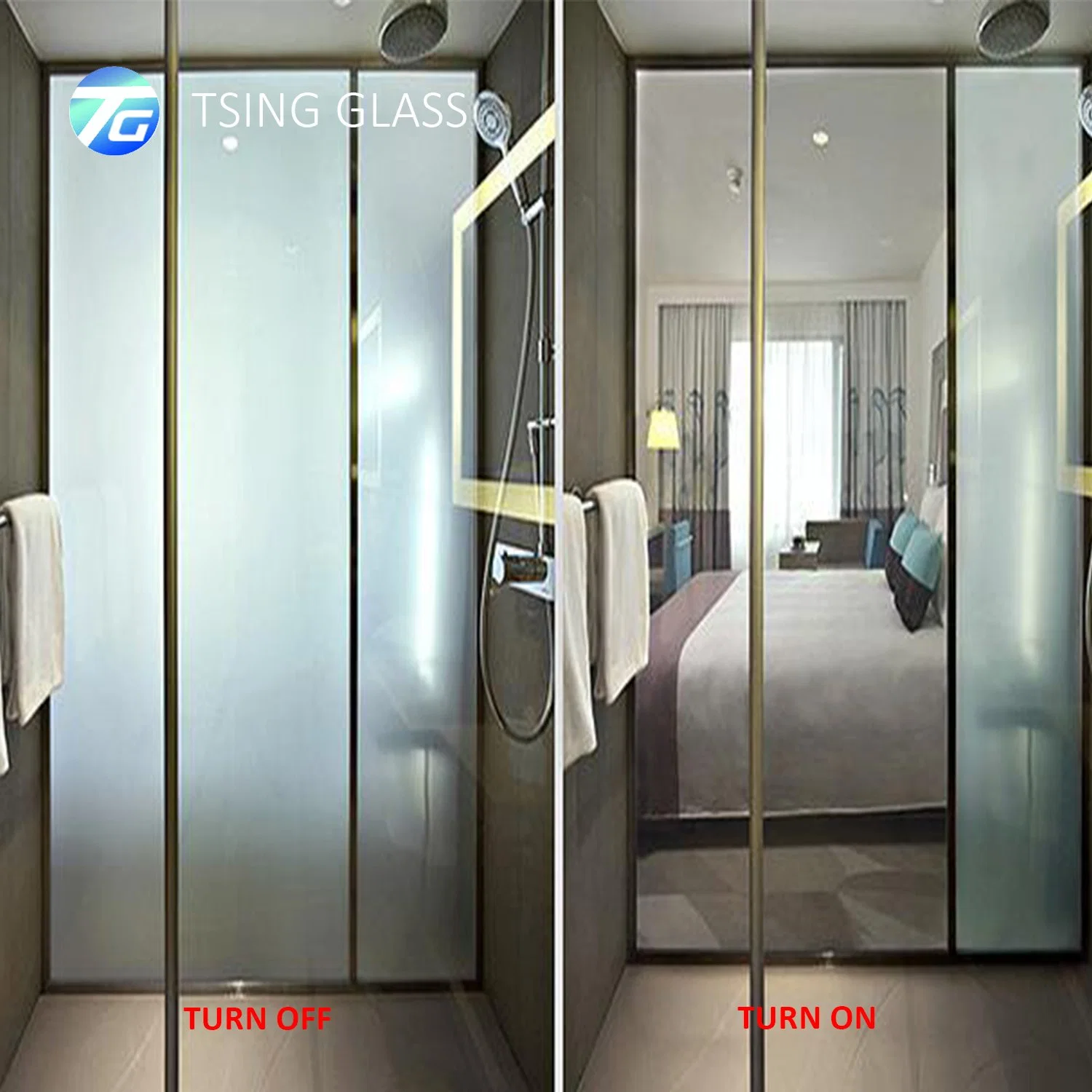

Smart Privacy glass is such a versatile solution. SMART GLASS creates an open space and privacy on demand for executive bedrooms, bathrooms, conference rooms, and offices. It is an ideal choice for high-traffic, high-moisture areas due to technology sealed within glass. Easy to install by any glazier, no moving parts, designed to work 100,000 hours.
| Category & Parameters | Specifications | |
|---|---|---|
| Basic Parameters | Thickness | 390±10 um / 0.55mm |
| Voltage | 60V (Operation: 40V/48V/65VAC) | |
| Power Consumption | <10W/M2 (Operating: 6W/M2) | |
| Parallel Luminous Transmittance (Off) | <6% | |
| Parallel Luminous Transmittance (On) | <65% | |
| Life Span | More than 10 years / >100,000 switch times | |
| Optical Performance | Visible Transmittance (On/Off) | Electricity On: >75% / Electricity Off: <1% |
| Haze (On/Off) | Electricity On: <7% / Electricity Off: >90% | |
| Viewing Angle | Electricity On: about 140 degree | |
| UV Shielding | >99% (Both On/Off) | |
| Infrared Shielding | On: >30% / Off: >90% | |
| Physical & Ambient | Response Time | Off-On: <200ms / On-Off: >10ms |
| Temperature Range | Operation: -30°C to 80°C / Storage: -40°C to 90°C | |
| Acoustics | Sound Insulation | STC 6+6 Tempered Glass: 39dB |
