Thermal Insulation Energy Saving 0.4 U-Value Thin Low-E Tempered Vacuum Insulated Glass
Thermal Insulation Energy Saving 0.4 U-Value Thin Low-E Tempered Vacuum Insulated Glass
Thermal Insulation Energy Saving 0.4 U-Value Thin Low-E Tempered Vacuum Insulated Glass
Thermal Insulation Energy Saving 0.4 U-Value Thin Low-E Tempered Vacuum Insulated Glass
Thermal Insulation Energy Saving 0.4 U-Value Thin Low-E Tempered Vacuum Insulated Glass
1 / 5
Thermal Insulation Energy Saving 0.4 U-Value Thin Low-E Tempered Vacuum Insulated Glass
Thermal Insulation Energy Saving 0.4 U-Value Thin Low-E Tempered Vacuum Insulated Glass
Thermal Insulation Energy Saving 0.4 U-Value Thin Low-E Tempered Vacuum Insulated Glass
Thermal Insulation Energy Saving 0.4 U-Value Thin Low-E Tempered Vacuum Insulated Glass
Thermal Insulation Energy Saving 0.4 U-Value Thin Low-E Tempered Vacuum Insulated Glass

Thermal Insulation Energy Saving 0.4 U-Value Thin Low-E Tempered Vacuum Insulated Glass

Type: Float Glass
Shape: Flat
Structure: Hollow
Send Inquiry

Product Description

📊 Basic Info
Model NO.
VIG
Glass Thickness
8mm
Air Cavity Depth
12mm
Moh's Hardness
8
Energy Transfer
Convection
Usage
Furniture, Door, Building, Window
Max Dimension
1500*2500mm
Min Dimension
300*300mm
Weight
20-28 Kg/㎡
Vacuum Layer
0.3mm
Service
Customized Service
Origin
China
🛡️ Product Description

Thermal Insulation Energy Saving 0.4 U-Value Thin Low-E Tempered Vacuum Insulated Glass Panel

Vacuum Insulated Glass

✨ Key Features:

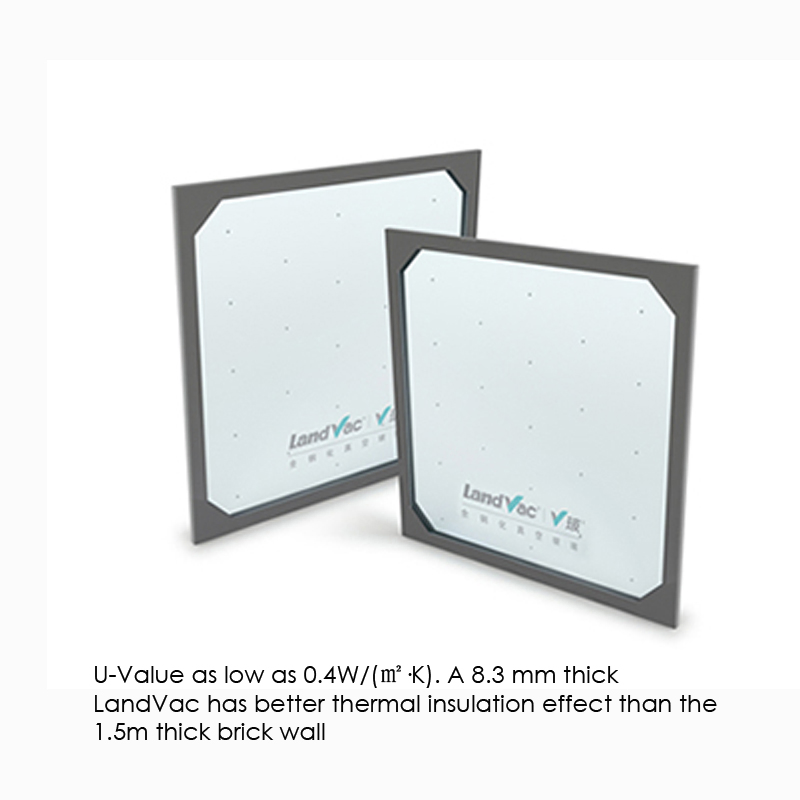

  • Thermal Insulation: U-Value as low as 0.4W/(㎡·K). An 8.3 mm thick panel outperforms a 1.5m thick brick wall.
  • Noise Reduction: Sound reduction index exceeding 36dB, creating library-quiet environments.
  • Free of Condensation: No condensation even at temperatures below -70 °C.
  • Tempered Safety: Meets tempered glass standards with wind resistance up to ±7200Pa.
📋 Technical Specifications

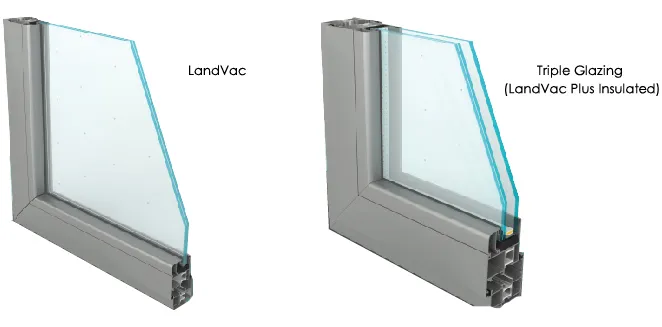

Product Structure
Product Type Structure Thickness (mm) U-Value (W/m²K) Sound Isolation (dB)
LandVac 4TL+0.3V+4T 8.3 0.48 39
Triple Glazing 4T+12A+4TL+0.3V+4T 24.3 0.42 42

* T-Tempered clear; TL-tempered Low-E; V-vacuum space; A-air space. Data calculated via U.S. ASHRAE standards.

💎 Advanced Structure & Advantages

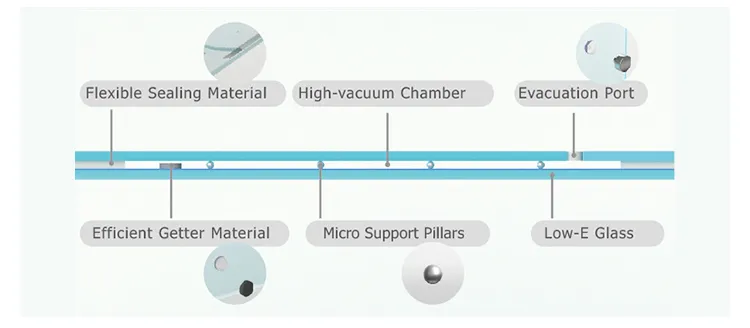

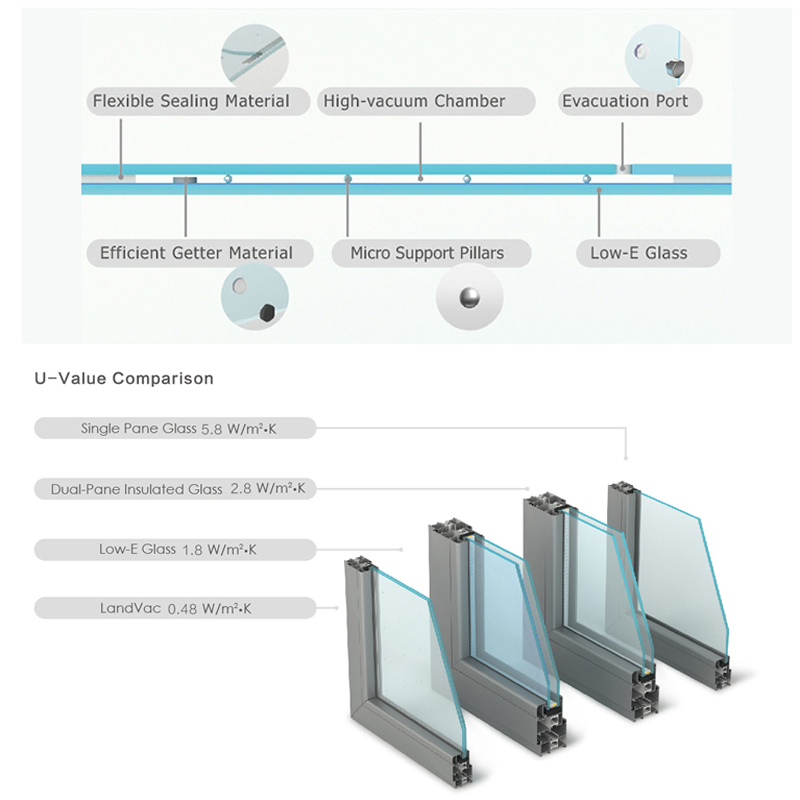

Inner Structure
Seven Advantages
Safety Glass

Retains safety features against impact. Surface stress exceeds 90MPa.

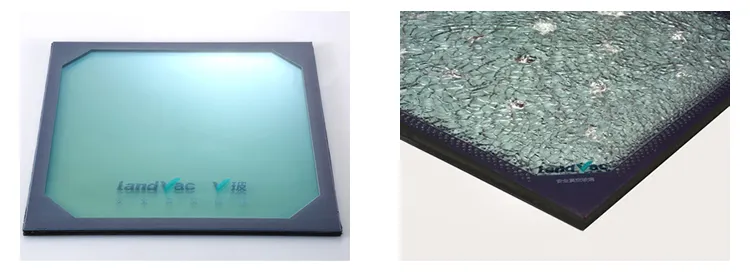

Safety Testing
Acoustic Barrier

Reduces outdoor noise by 39 dB (vs 29 dB for standard laminated glass).

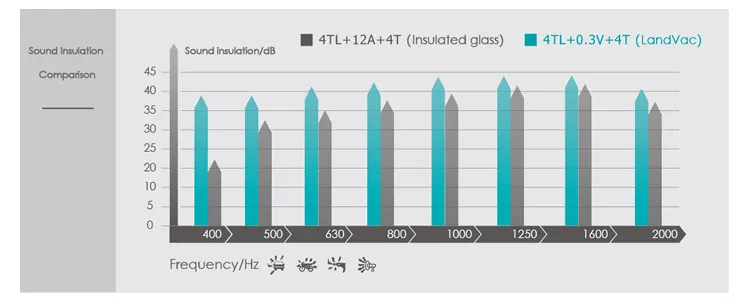

Noise Performance

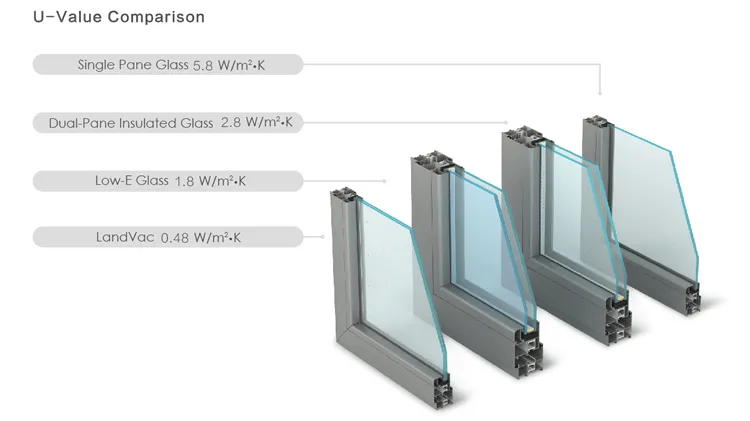

Performance Comparison

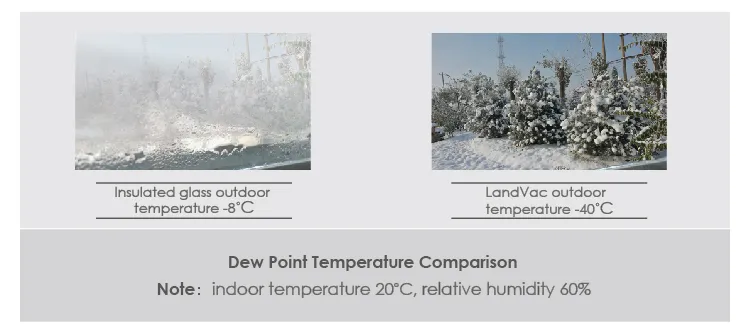

Condensation Resistance
⚙️ Core Manufacturing Technologies
  • Low Temperature Sealing: Retains tempered glass strength by avoiding high-heat annealing.
  • Flexible Edge Sealing: High resistance to expansion/contraction for durable, long-life seals.
  • High Vacuum Sealing: Maintains layer consistency in a UHV chamber.
  • Flat Sealing: Protrusion-free edges for safe transport and elegant mounting.
  • Intelligent Automation: Minimized human intervention for consistent high-quality production.
🏢 Wide Range Applications
Applications
Architecture: Doors, windows, curtain walls, and skylights.
Home Appliances: Wine cabinets, freezers, and display cases.
BIPV: Solar photovoltaic buildings.
Transportation: High-speed rail, aircraft, and vessels.
🏭 Production & Qualification

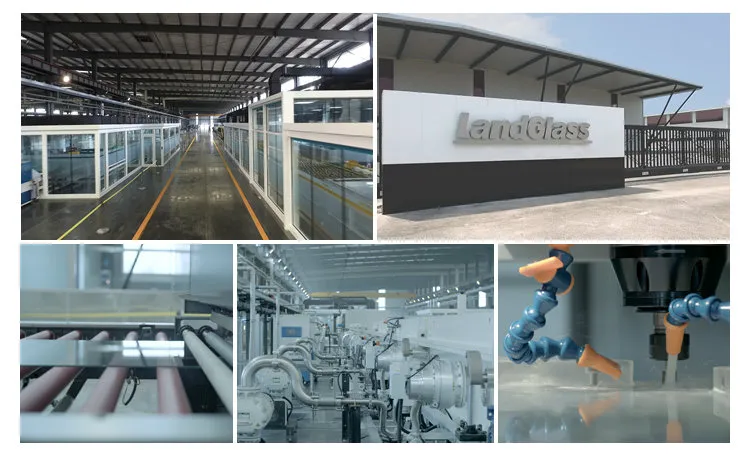

Production Center

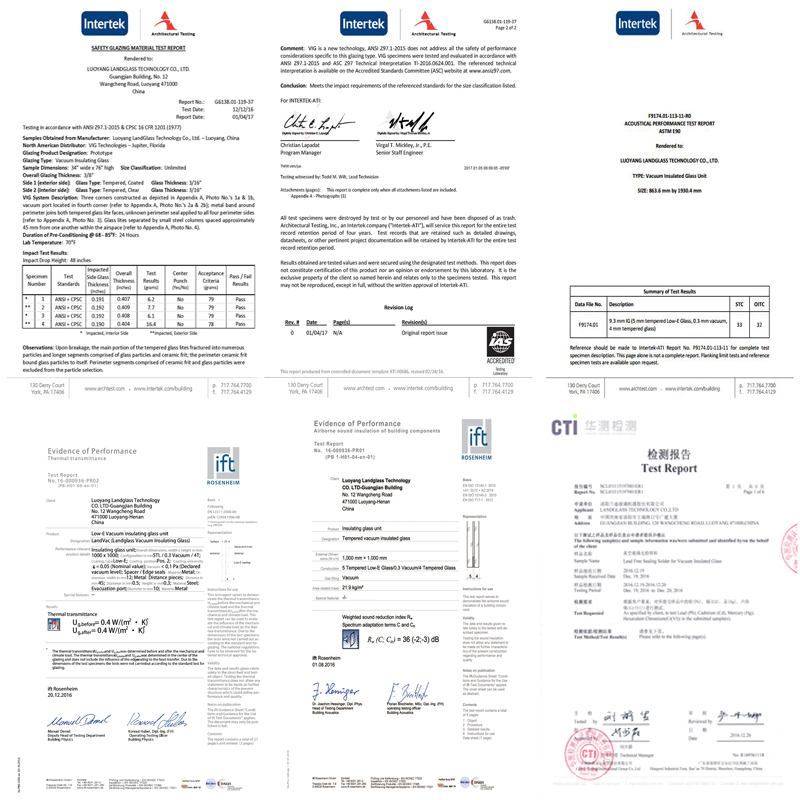

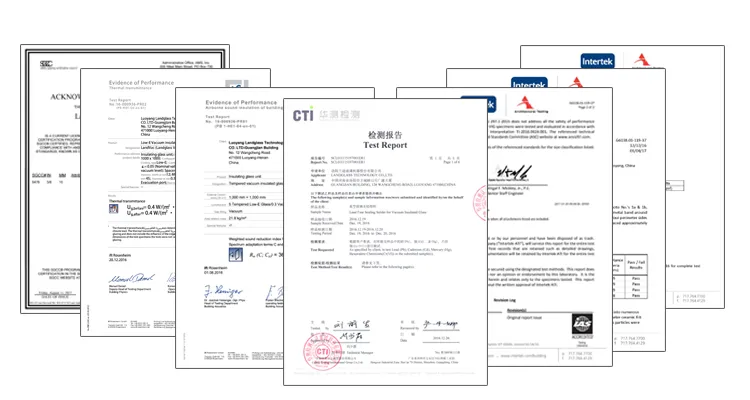

Qualifications

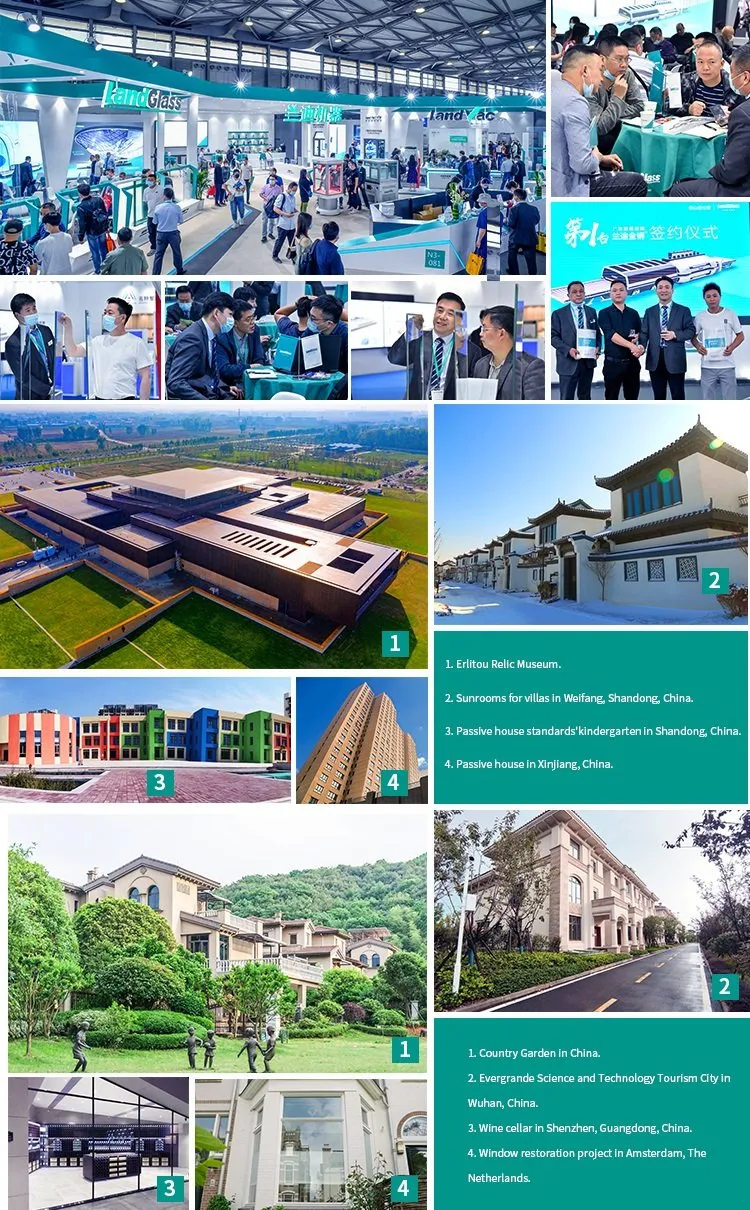

Exhibition Cases
❓ Frequently Asked Questions (FAQ)
1. What is the thermal insulation performance (U-Value) of this glass? The LandVac vacuum insulated glass achieves a U-Value as low as 0.48 W/(m²·K) for single units and 0.42 W/(m²·K) for triple-glazed versions, providing superior insulation compared to standard insulated glass.
2. Is vacuum insulated glass safe for building use? Yes. It is fully tempered. By using exclusive low-temperature sealing technology, the glass retains its safety characteristics with surface stress exceeding 90MPa, meeting international safety glass standards.
3. How much noise can this glass block? It effectively blocks sound transmission with a sound reduction index exceeding 36dB. It is particularly effective against medium and low-frequency noises such as traffic and construction.
4. Does the vacuum layer cause condensation in winter? No. The high vacuum interspace eliminates dew condensation. The interior surface remains free of condensation even when outdoor temperatures fall as low as -40°C or even -70°C.
5. What is the expected service life of the product? The life expectancy of our vacuum insulated glass exceeds 25 years, thanks to flexible edge sealing technology and built-in high-efficiency getters that prevent material aging and seal failure.
6. What is the maximum size available for these panels? The maximum dimensions for LandVac panels are 1500 x 2500 mm, with a minimum size of 300 x 300 mm.
