IGU DGU Heatproof / Double Glazed Glazing / Hollow / Curtain Wall / Window / Facades / Insulation / Tempered Insulating / Sound Proof / LOW-E Insulated Insulating Unit Glass

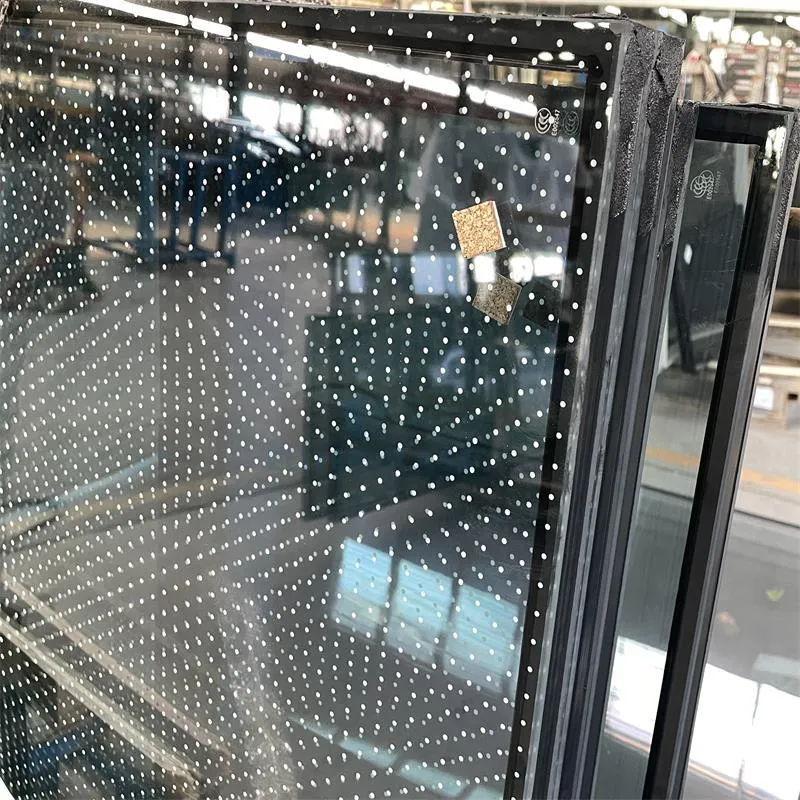

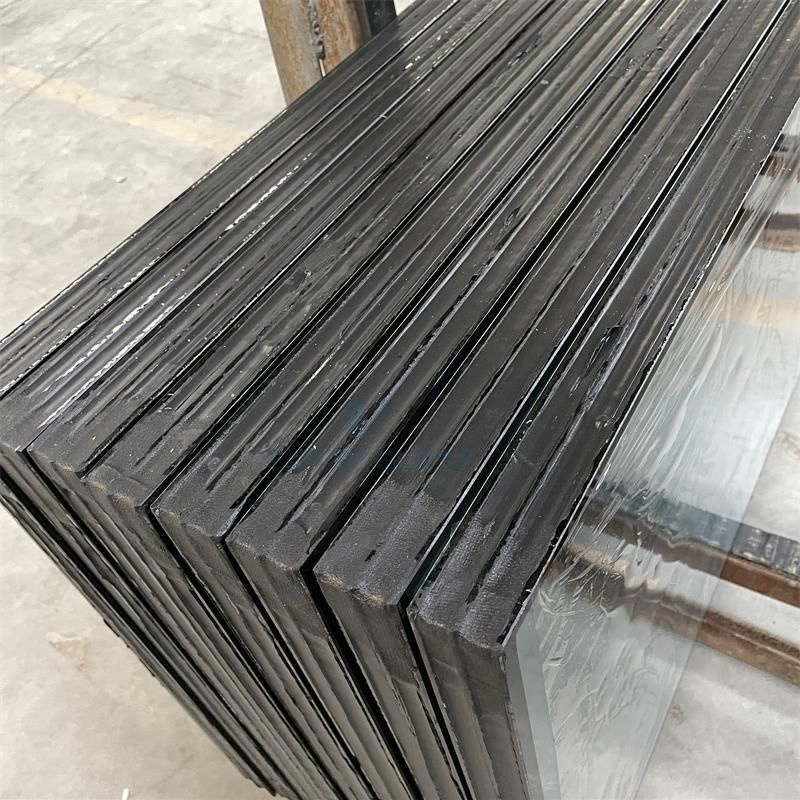

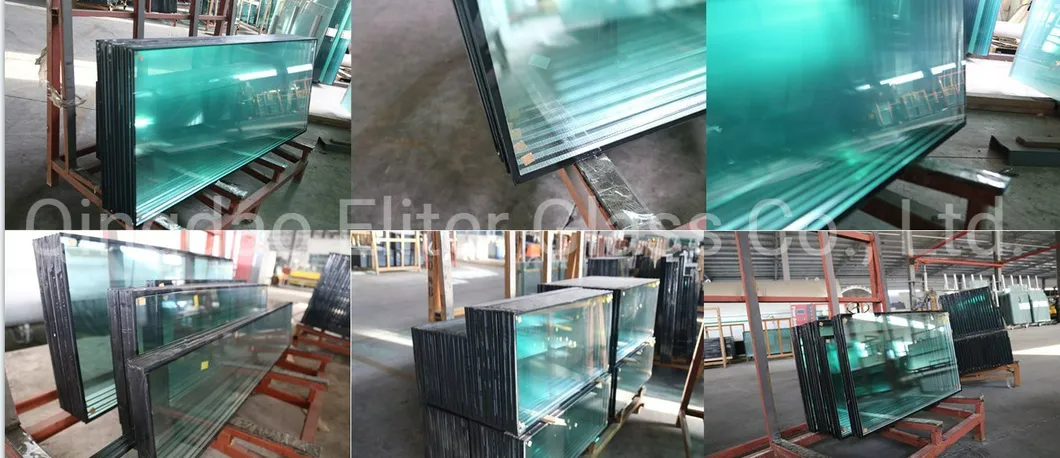

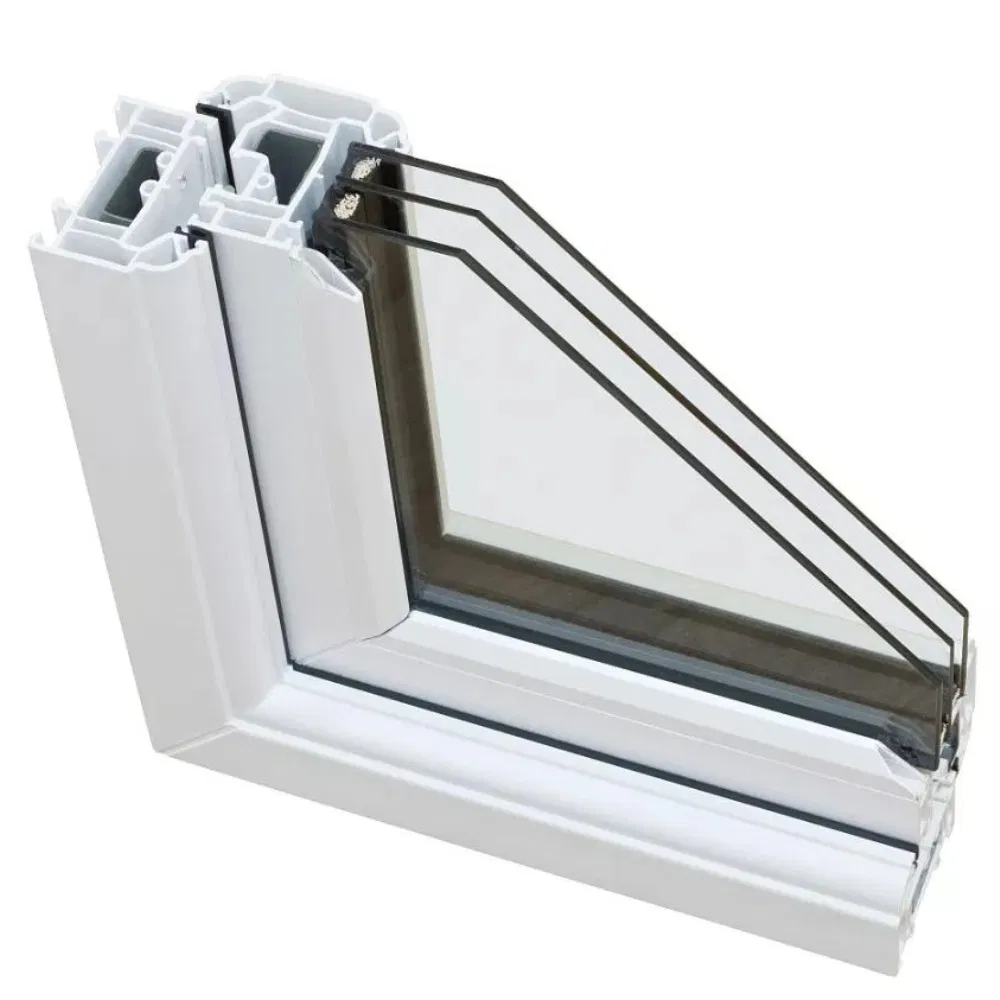

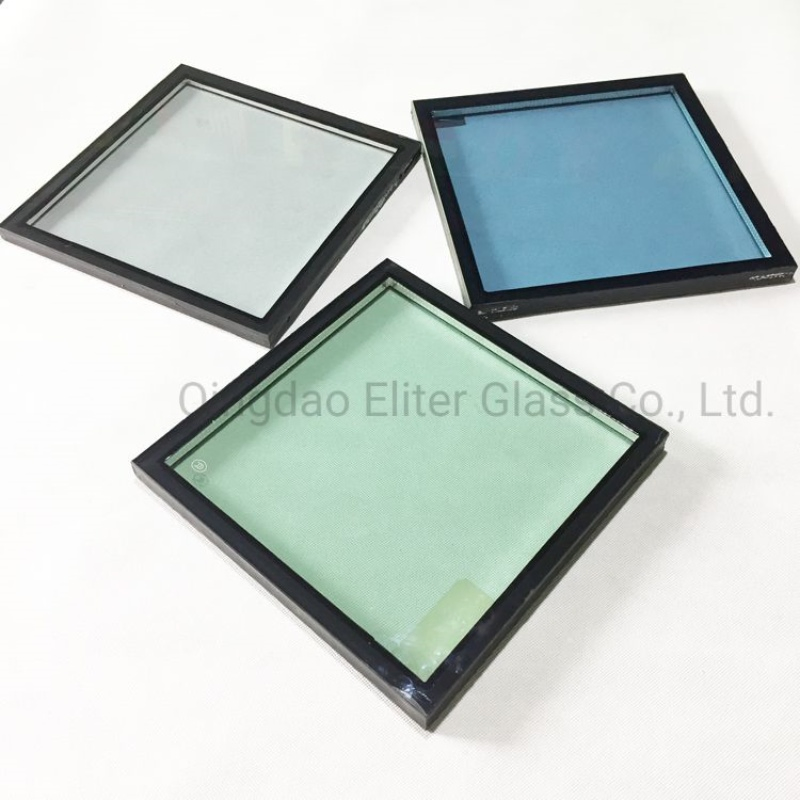

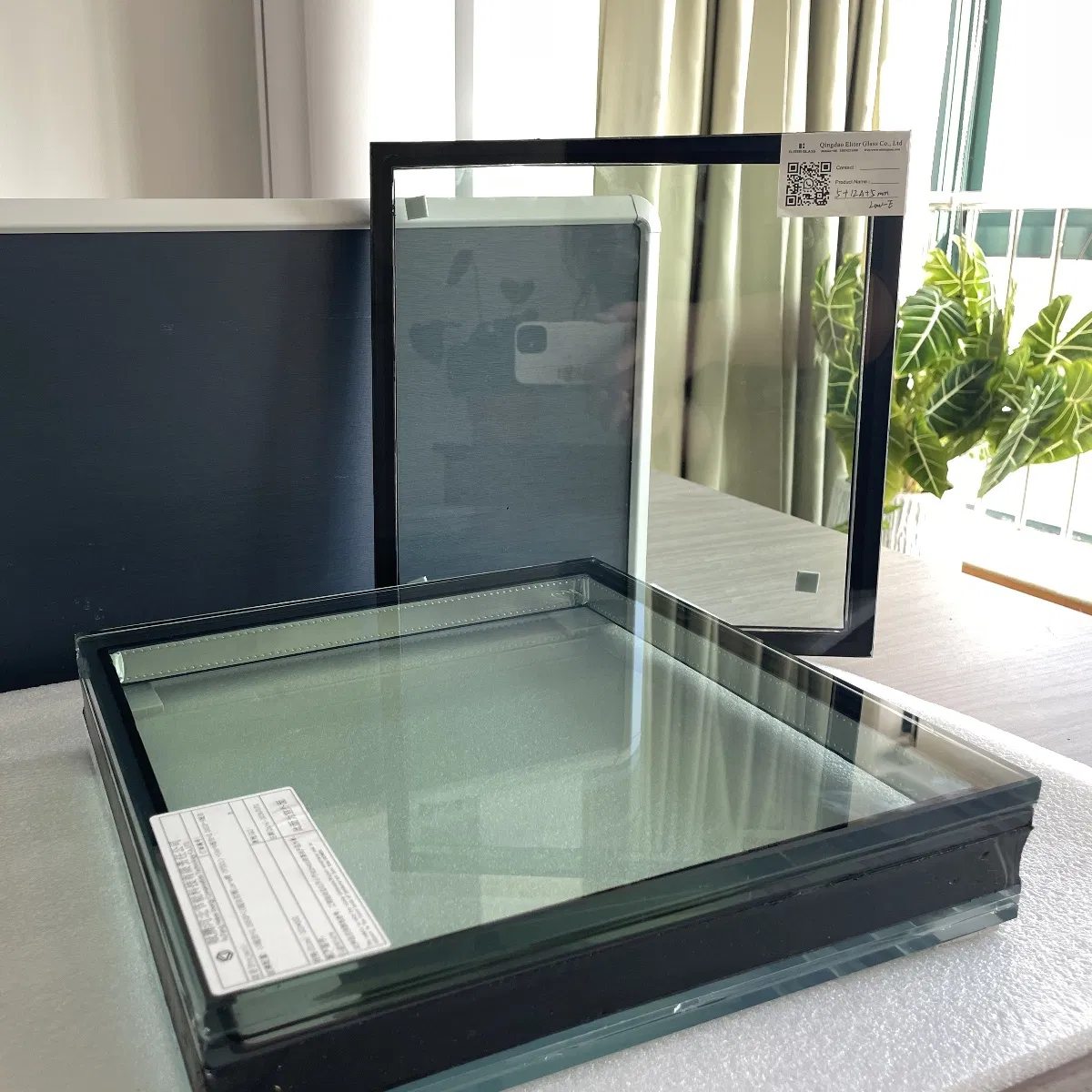

Insulated glass (IGU) is made of two or more pieces of glass glazing sheets which might be low-e, reflective, or normal float colored glass. It utilizes sealant gumming and aluminum spacers filled with desiccant to ensure a perfectly sealed unit.
| Glass Types | Double/Triple Glazed, Silk Screen Printed, Tempered Laminated, Curved, Oversized IGU | Spacer | Aluminum, Stainless steel, Thermal break spacer |
| Glass Option | Clear, Low Iron, Tinted, Pattern, Ceramic Fritted, Reflective, Low-E (Single/Double/Triple Silver) | ||
| Color Range | Neutral, Light Blue, Ford Blue, Dark Blue, Ocean Blue, Light Gray, Blue-gray, Light Green, Dark Green, Gold, Bronze | ||
| Gas Filling | Argon or Air | HS Code | 7008001000 |

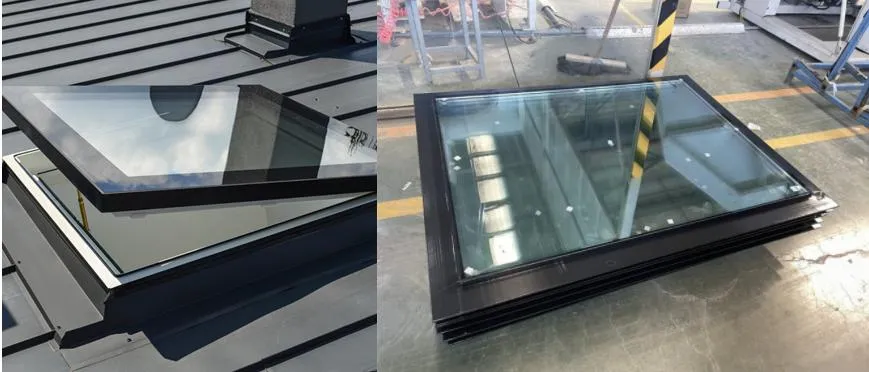

Stepped Insulating Glass: Used for semi-stick curtain walls or skylights where offset edges are required.

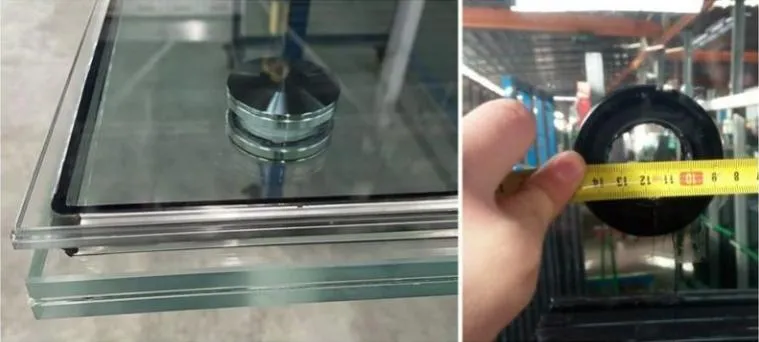

Perforated IGU: Point-supported glass facades featuring safety perforations sealed with aluminum rings.

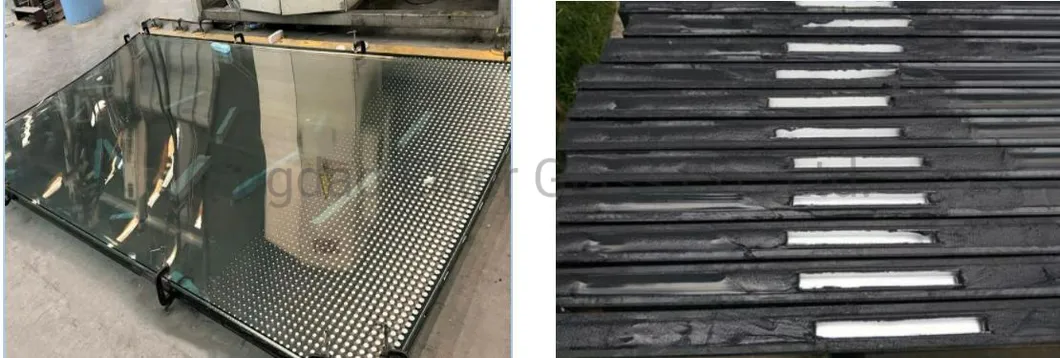

U Channels: Embedded aluminum frames for supporting points in thick spacer designs.
Visible light transmittance range: 70-80%; Visible light reflectance: 10-48%.
Significantly lowered U-value, especially when filled with inert gases like Argon.
Excellent soundproof function, capable of reducing noise by more than 30 dB.
Dew point below -65 ºC ensures no condensation under normal applications.

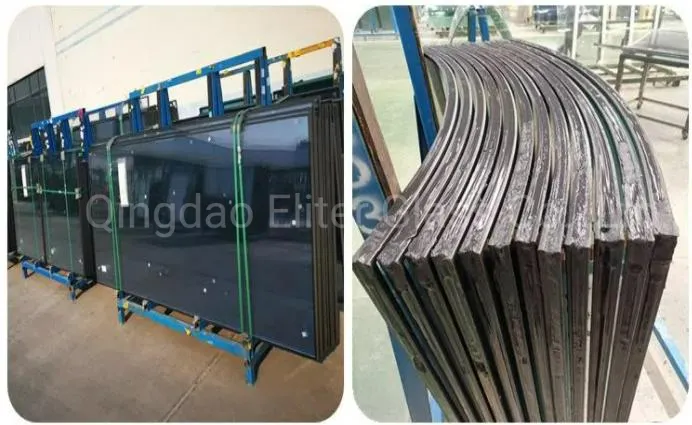

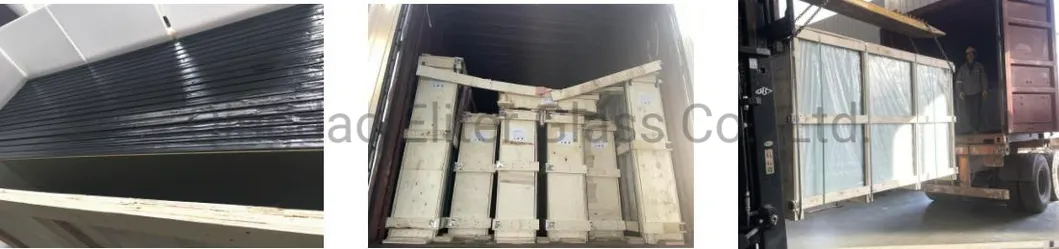

Widely used in curtain walls, glass facades, residential windows, and partitions. All products are packed in high-strength wooden crates (1.5-2 tons per crate) for safe overseas transportation.
