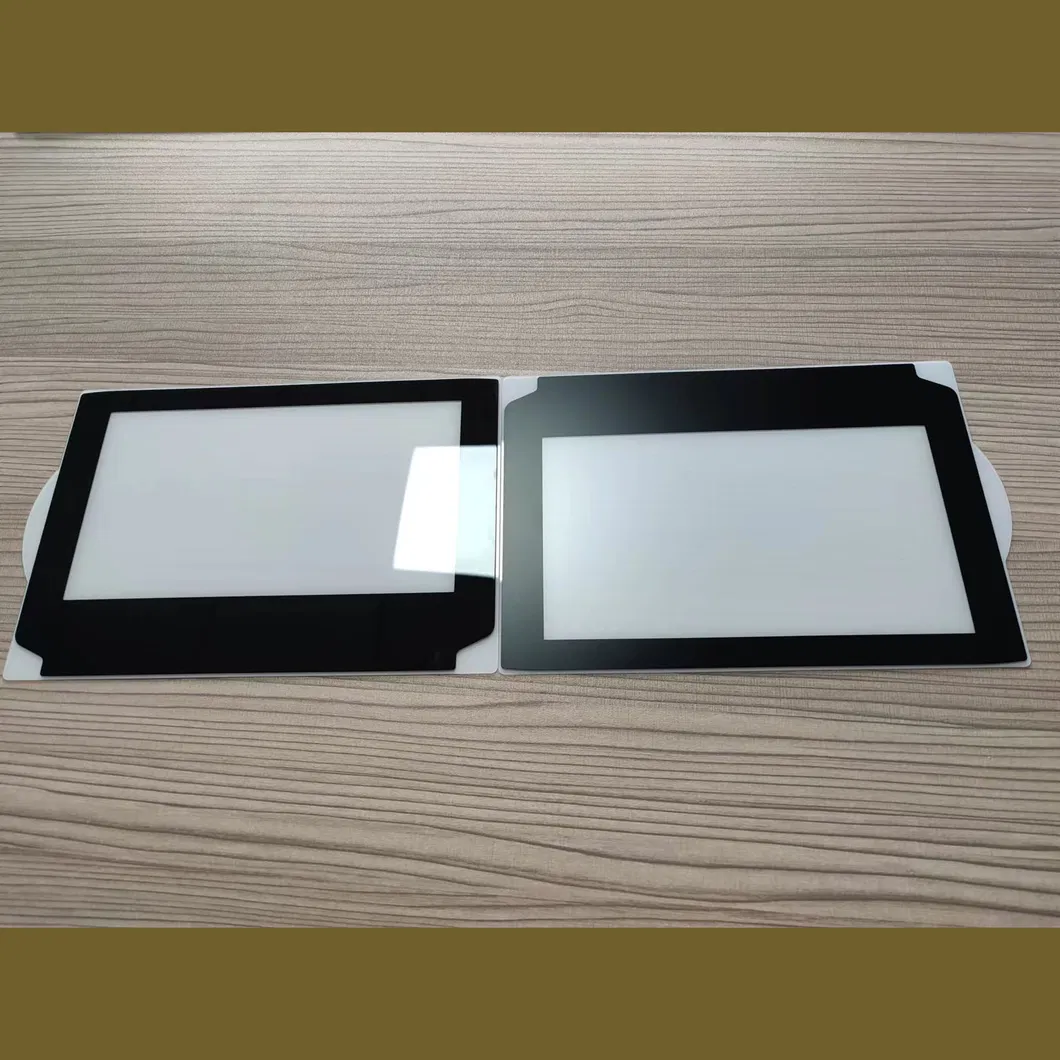

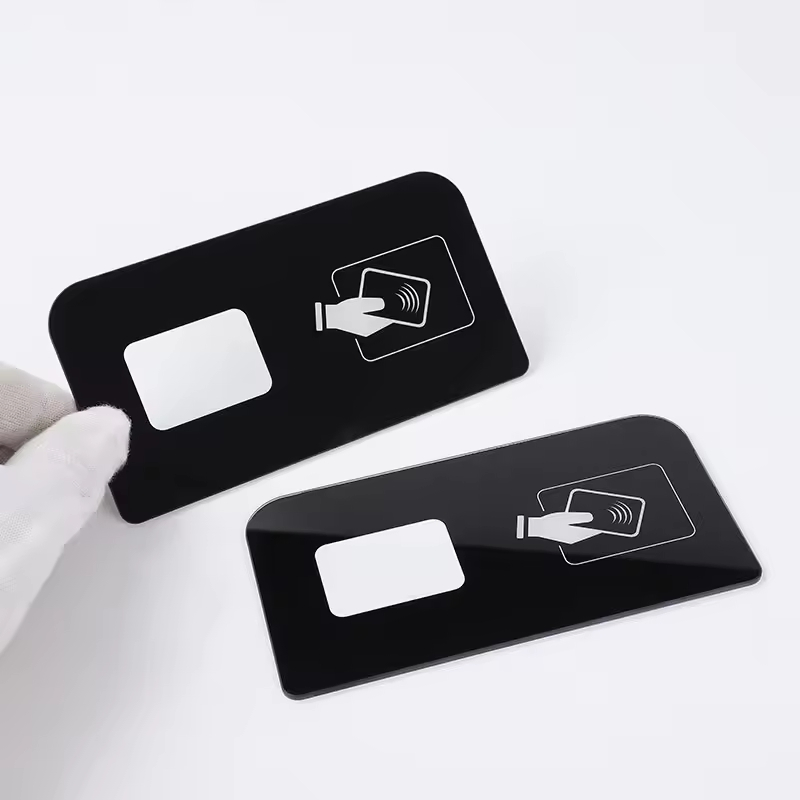

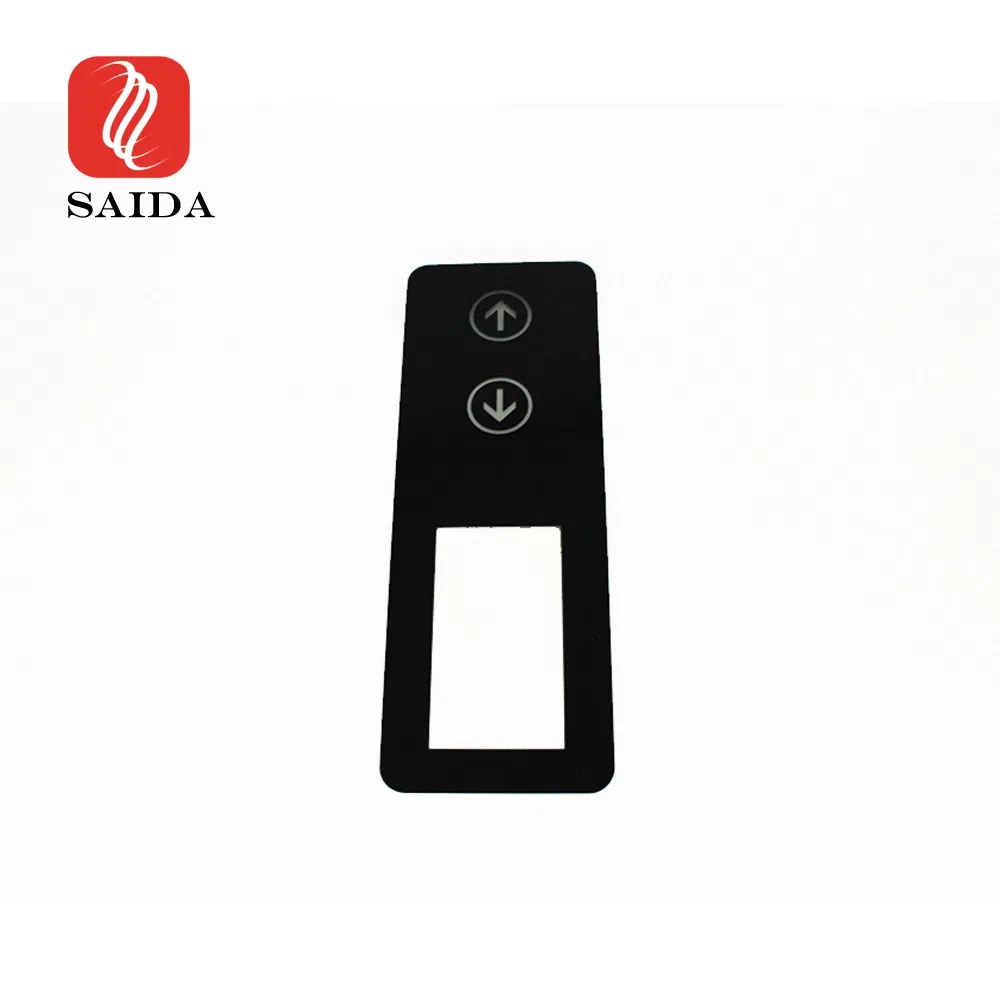

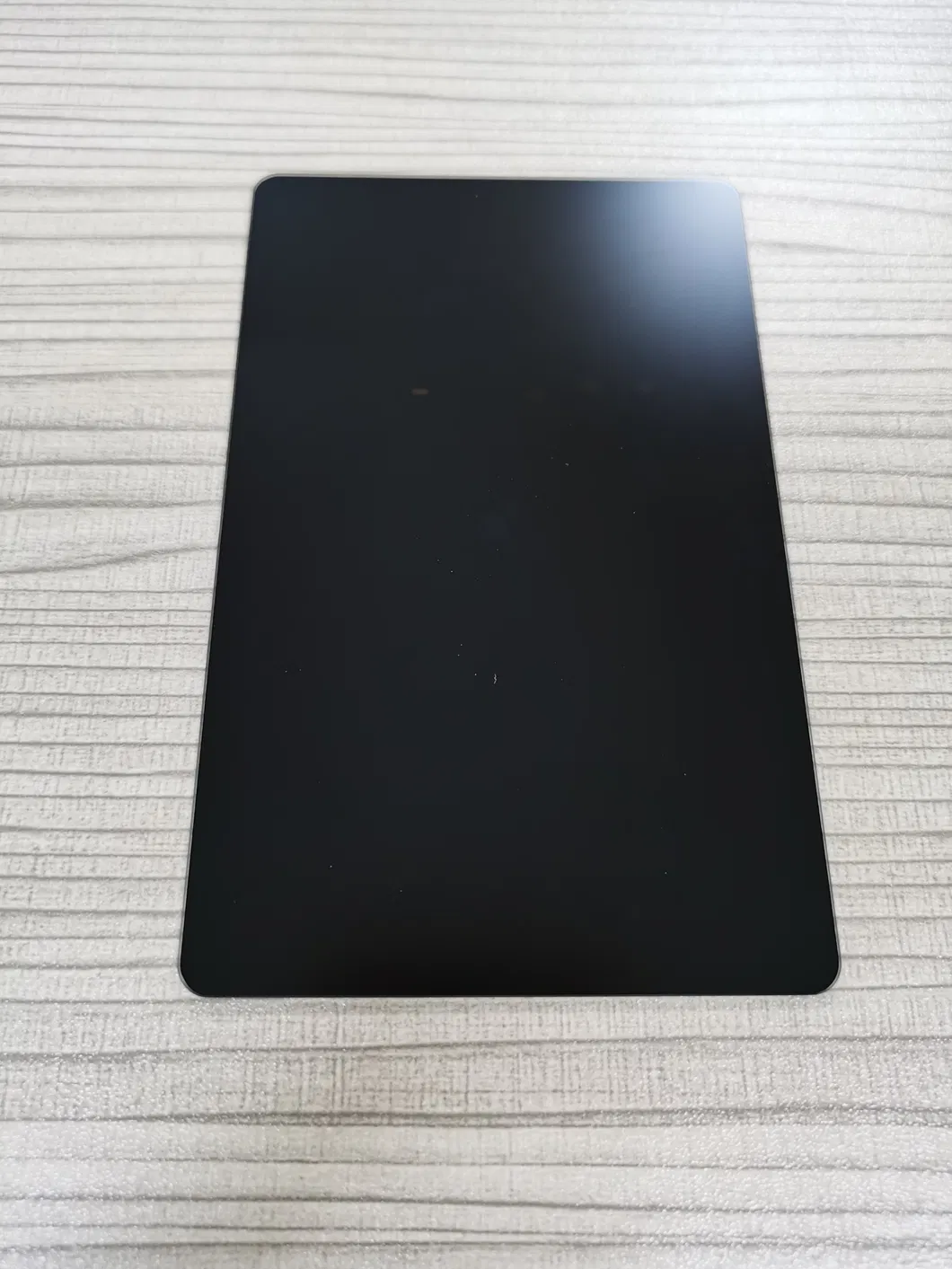

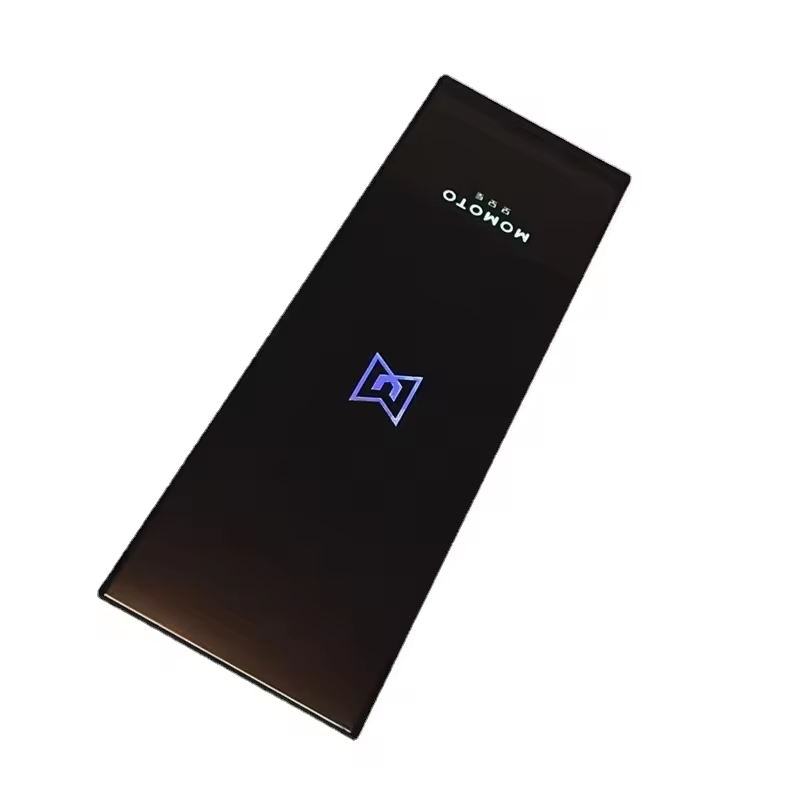

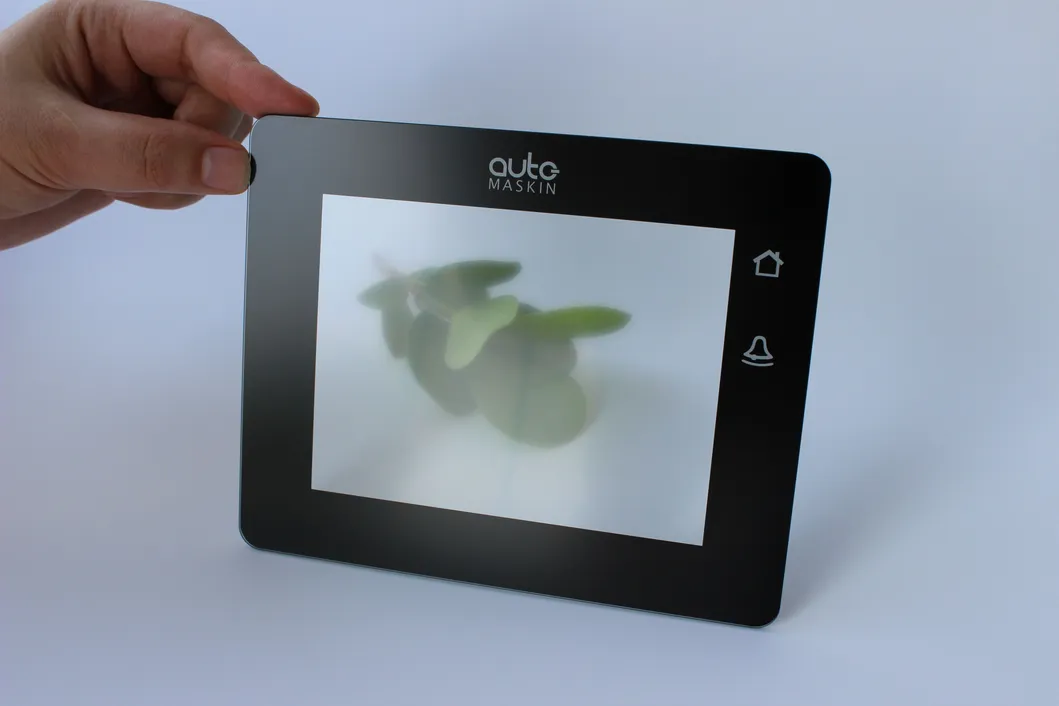

AG glass, also known as anti-glare glass, is treated on one or both sides to form fine concave and convex particles. This achieves multi-angle diffuse reflection, reducing incident light reflection from 8% to below 2%. It eliminates glare problems and significantly improves visual comfort.
Primary Applications: Vehicle displays, TV splicing walls, flat screens, LCD displays, touch screens, industrial instruments, and picture frames.
| Parameter | Option 1 | Option 2 | Option 3 | Option 4 | Option 5 |
|---|---|---|---|---|---|
| Gloss | 35±10 | 50±10 | 70±10 | 95±10 | 110±10 |
| Roughness | 0.18 | 0.15 | 0.12 | 0.09 | 0.07 |
| Haze | 17 | 11 | 4.7 | 3 | 2 |
| Transmittance | >89% | >89% | >89% | >89% | >89% |
| Sharpness | 40 | 57 | 79 | 83 | 91 |

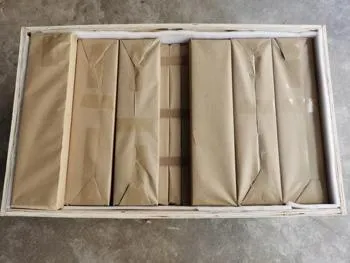

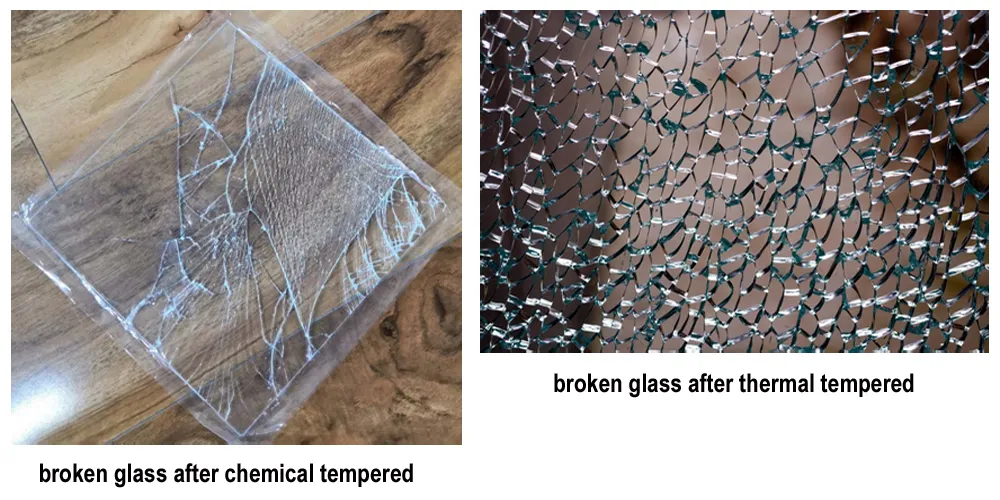

Each glass unit uses double-sided protective film, wrapped in Kraft paper, and secured in a sturdy plywood crate. Tempered glass provides 4x the strength of ordinary glass and breaks into small, harmless fragments if damaged.
